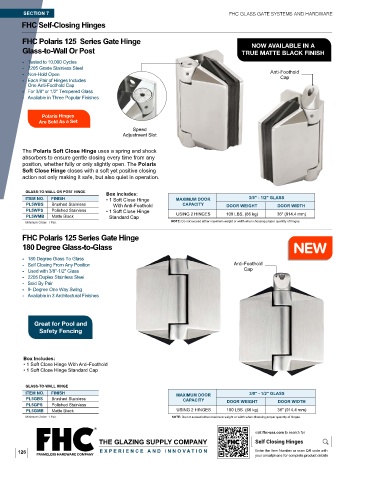

Page 140 - FHC FGR24R Architectural Railing Systems

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Self-Closing Hinges

FHC Polaris 125 Series Gate Hinge
NOW AVAILABLE IN A
Glass-to-Wall Or Post TRUE MATTE BLACK FINISH
- Tested to 10,000 Cycles
- 2205 Grade Stainless Steel
Anti-Foothold
- Non-Hold Open
Cap
- Each Pair of Hinges Includes
One Anti-Foothold Cap
- For 3/8" or 1/2" Tempered Glass
- Available in Three Popular Finishes

Polaris Hinges
Are Sold As a Set
Speed
Adjustment Slot

The Polaris Soft Close Hinge uses a spring and shock
absorbers to ensure gentle closing every time from any
position, whether fully or only slightly open. The Polaris
Soft Close Hinge closes with a soft yet positive closing
action not only making it safe, but also quiet in operation.

GLASS-TO-WALL OR POST HINGE Box Includes:
ITEM NO. FINISH • 1 Soft Close Hinge MAXIMUM DOOR 3/8" - 1/2" GLASS

PL5WBS Brushed Stainless With Anti-Foothold CAPACITY DOOR WEIGHT DOOR WIDTH
PL5WPS Polished Stainless • 1 Soft Close Hinge

PL5WMB Matte Black Standard Cap USING 2 HINGES 100 LBS. (66 kg) 36" (914.4 mm)
Minimum Order: 1 Pair. NOTE: Do not exceed either maximum weight or width when choosing proper quantity of hinges.
FHC Polaris 125 Series Gate Hinge
180 Degree Glass-to-Glass

- 180 Degree Glass To Glass
- Self Closing From Any Position Anti-Foothold
- Used with 3/8"-1/2" Glass Cap
- 2205 Duplex Stainless Steel
- Sold By Pair
- 9- Degree One Way Swing
- Available in 3 Architectural Finishes

Great for Pool and
Safety Fencing

Box Includes:
• 1 Soft Close Hinge With Anti-Foothold
• 1 Soft Close Hinge Standard Cap

GLASS-TO-WALL HINGE
ITEM NO. FINISH MAXIMUM DOOR 3/8" - 1/2" GLASS
PL5GBS Brushed Stainless CAPACITY DOOR WEIGHT DOOR WIDTH
PL5GPS Polished Stainless
PL5GMB Matte Black USING 2 HINGES 100 LBS. (66 kg) 36" (914.4 mm)
Minimum Order: 1 Pair. NOTE: Do not exceed either maximum weight or width when choosing proper quantity of hinges.

visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Self Closing Hinges

126 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
