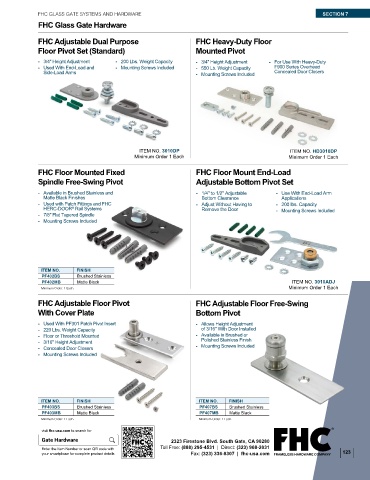

Page 137 - FHC FGR24R Architectural Railing Systems

FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Glass Gate Hardware

FHC Adjustable Dual Purpose FHC Heavy-Duty Floor
Floor Pivot Set (Standard) Mounted Pivot
- 3/4" Height Adjustment - 200 Lbs. Weight Capacity - 3/4" Height Adjustment - For Use With Heavy-Duty
- Used With End-Load and - Mounting Screws Included - 550 Lb. Weight Capacity F900 Series Overhead
Side-Load Arms Concealed Door Closers
- Mounting Screws Included

ITEM NO. 3010DP ITEM NO. HD3010DP
Minimum Order 1 Each Minimum Order 1 Each
FHC Floor Mounted Fixed FHC Floor Mount End-Load
Spindle Free-Swing Pivot Adjustable Bottom Pivot Set

- Available in Brushed Stainless and - 1/4" to 1/2" Adjustable - Use With End-Load Arm
Matte Black Finishes Bottom Clearance Applications
- Used with Patch Fittings and FHC - Adjust Without Having to - 200 lbs. Capacity
HERC-DOOR Rail Systems Remove the Door - Mounting Screws Included
®
- 7/8" Flat Tapered Spindle
- Mounting Screws Included

ITEM NO. FINISH
PF402BS Brushed Stainless
PF402MB Matte Black ITEM NO. 3010ADJ
Minimum Order: 1 Each. Minimum Order 1 Each

FHC Adjustable Floor Pivot FHC Adjustable Floor Free-Swing
With Cover Plate Bottom Pivot
- Used With PF301 Patch Pivot Insert - Allows Height Adjustment
- 220 Lbs. Weight Capacity of 3/16" With Door Installed
- Floor or Threshold Mounted - Available in Brushed or
Polished Stainless Finish
- 3/16" Height Adjustment
- Mounting Screws Included
- Concealed Door Closers
- Mounting Screws Included

ITEM NO. FINISH ITEM NO. FINISH
PF403BS Brushed Stainless PF407BS Brushed Stainless
PF403MB Matte Black PF407MB Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Gate Hardware 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 123
