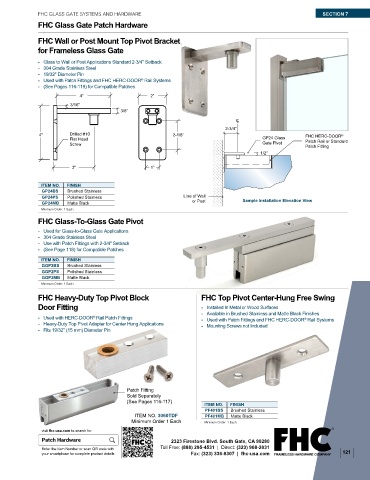

Page 135 - FHC FGR24R Architectural Railing Systems

FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Glass Gate Patch Hardware

FHC Wall or Post Mount Top Pivot Bracket
for Frameless Glass Gate

- Glass to Wall or Post Applications Standard 2-3/4" Setback
- 304 Grade Stainless Steel
- 19/32" Diameter Pin
- Used with Patch Fittings and FHC HERC-DOOR Rail Systems
®
- (See Pages 116-119) for Compatible Patches
4" 2"
3/16"
3/8"

C L
2-3/4"
4" Drilled #10 2-1/8" FHC HERC-DOOR
®
Flat Head GP24 Glass
Gate Pivot Patch Rail or Standard
Screw
Patch Fitting
1/2"
3" 1"

ITEM NO. FINISH
GP24BS Brushed Stainless
GP24PS Polished Stainless Line of Wall Sample Installation Elevation View
GP24MB Matte Black or Post
Minimum Order: 1 Each.
FHC Glass-To-Glass Gate Pivot
- Used for Glass-to-Glass Gate Applications
- 304 Grade Stainless Steel
- Use with Patch Fittings with 2-3/4" Setback
- (See Page 118) for Compatible Patches
ITEM NO. FINISH
GGP2BS Brushed Stainless
GGP2PS Polished Stainless
GGP2MB Matte Black
Minimum Order: 1 Each.
FHC Heavy-Duty Top Pivot Block FHC Top Pivot Center-Hung Free Swing
Door Fitting - Installed In Metal or Wood Surfaces
- Available in Brushed Stainless and Matte Black Finishes
®
- Used with HERC-DOOR Rail Patch Fittings
®
- Used with Patch Fittings and FHC HERC-DOOR Rail Systems
- Heavy-Duty Top Pivot Adapter for Center Hung Applications
- Mounting Screws not Included
- Fits 19/32" (15 mm) Diameter Pin

Patch Fitting
Sold Separately
(See Pages 116-117)
ITEM NO. FINISH
PF401BS Brushed Stainless
ITEM NO. 3060TDF PF401MB Matte Black
Minimum Order 1 Each Minimum Order: 1 Each.
