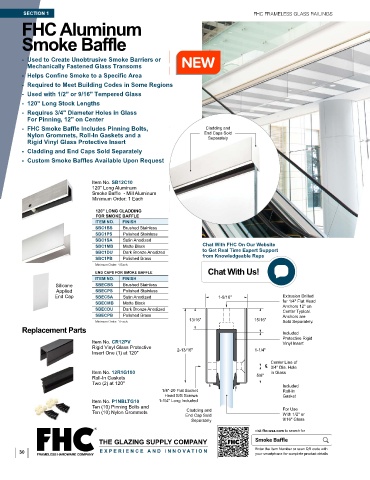

Page 44 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC Aluminum

Smoke Baffle

- Used to Create Unobtrusive Smoke Barriers or
Mechanically Fastened Glass Transoms
- Helps Confine Smoke to a Specific Area
- Required to Meet Building Codes in Some Regions
- Used with 1/2" or 9/16" Tempered Glass
- 120" Long Stock Lengths
- Requires 3/4" Diameter Holes in Glass
For Pinning, 12" on Center
- FHC Smoke Baffle Includes Pinning Bolts, Cladding and
Nylon Grommets, Roll-In Gaskets and a End Caps Sold
Separately
Rigid Vinyl Glass Protective Insert
- Cladding and End Caps Sold Separately
- Custom Smoke Baffles Available Upon Request

Item No. SB12C10
120" Long Aluminum
Smoke Baffle - Mill Aluminum
Minimum Order: 1 Each
120" LONG CLADDING
FOR SMOKE BAFFLE
ITEM NO. FINISH
SBC1BS Brushed Stainless
SBC1PS Polished Stainless
SBC1SA Satin Anodized
SBC1MB Matte Black Chat With FHC On Our Website
SBC1DU Dark Bronze Anodized to Get Real Time Expert Support
from Knowledgeable Reps
SBC1PB Polished Brass
Minimum Order: 1 Each.
Chat With Us!
END CAPS FOR SMOKE BAFFLE
ITEM NO. FINISH
Silicone SBECBS Brushed Stainless
Applied SBECPS Polished Stainless
End Cap SBECSA Satin Anodized 1-9/16" Extrusion Drilled
SBECMB Matte Black for 1/4" Flat Head
Anchors 12" on
SBECDU Dark Bronze Anodized Center Typical.
SBECPB Polished Brass Anchors are
13/16" 15/16"
Minimum Order: 1 Each. Sold Separately.
Replacement Parts
Included
Protective Rigid
Item No. CR12PV Vinyl Insert
Rigid Vinyl Glass Protective 2-13/16" 1-1/4"
Insert One (1) at 120"
Center Line of
C L 3/4" Dia. Hole
Item No. 12R1G100 in Glass
Roll-In Gaskets 5/8"
Two (2) at 120"
Included
1/4"-20 Flat Socket Roll-In
Head S/S Screws Gasket
Item No. P1NBLTG10 1-1/4" Long Included
Ten (10) Pinning Bolts and For Use
Ten (10) Nylon Grommets Cladding and
End Cap Sold With 1/2" or
Separately 9/16" Glass
