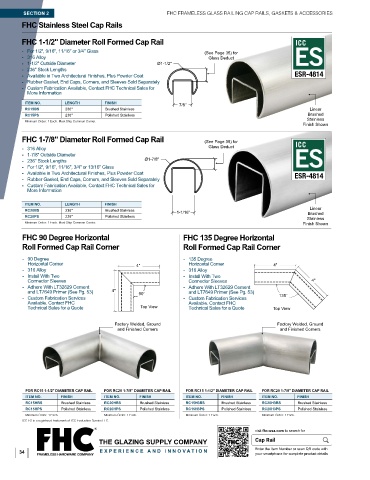

Page 48 - FHC FGR24R Architectural Railing Systems

RC15
RC15 FHC Stainless Steel Cap Rails FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES RC20
SECTION 2
RC20

FHC 1-1/2" Diameter Roll Formed Cap Rail ICC
- For 1/2", 9/16", 11/16" or 3/4" Glass
(See Page 35) for
- 316 Alloy Glass Deduct
- 1-1/2" Outside Diameter Ø1-1/2"
- 236" Stock Lengths
- Available in Two Architectural Finishes, Plus Powder Coat ESR-4814
- Rubber Gasket, End Caps, Corners, and Sleeves Sold Separately
- Custom Fabrication Available, Contact FHC Technical Sales for
More Information
ITEM NO. LENGTH FINISH
7/8"
RC15BS 236" Brushed Stainless Linear
RC15PS 236" Polished Stainless Brushed
Stainless
Minimum Order: 1 Each. Must Ship Common Carrier.
Finish Shown
FHC 1-7/8" Diameter Roll Formed Cap Rail RC15 (See Page 35) for RC20 RC20
RC15
- 316 Alloy Glass Deduct ICC
- 1-7/8" Outside Diameter
Ø1-7/8"
- 236" Stock Lengths
- For 1/2", 9/16", 11/16", 3/4" or 13/16" Glass
- Available in Two Architectural Finishes, Plus Powder Coat ESR-4814
- Rubber Gasket, End Caps, Corners, and Sleeves Sold Separately
- Custom Fabrication Available, Contact FHC Technical Sales for
More Information

ITEM NO. LENGTH FINISH
Linear
RC20BS 236" Brushed Stainless
1-1/16" Brushed
RC20PS 236" Polished Stainless
Stainless
Minimum Order: 1 Each. Must Ship Common Carrier. Finish Shown
FHC 90 Degree Horizontal FHC 135 Degree Horizontal
Roll Formed Cap Rail Corner Roll Formed Cap Rail Corner

- 90 Degree - 135 Degree
Horizontal Corner Horizontal Corner
4" 4"
- 316 Alloy - 316 Alloy
- Install With Two - Install With Two
Connector Sleeves Connector Sleeves 4"
- Adhere With LT32629 Cement - Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53) 4" and LT7649 Primer (See Pg. 53)
90˚ 135˚
- Custom Fabrication Services - Custom Fabrication Services
Available. Contact FHC Available. Contact FHC
Technical Sales for a Quote Top View Technical Sales for a Quote Top View
Factory Welded, Ground Factory Welded, Ground
and Finished Corners and Finished Corners

FOR RC15 1-1/2" DIAMETER CAP RAIL FOR RC20 1-7/8" DIAMETER CAP RAIL FOR RC15 1-1/2" DIAMETER CAP RAIL FOR RC20 1-7/8" DIAMETER CAP RAIL
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
RC15HBS Brushed Stainless RC20HBS Brushed Stainless RC15H3BS Brushed Stainless RC20H3BS Brushed Stainless
RC15HPS Polished Stainless RC20HPS Polished Stainless RC15H3PS Polished Stainless RC20H3PS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
34 EXPERIENCE AND INNOV A TION your smartphone for complete product details
