RC15
RC15
RC20

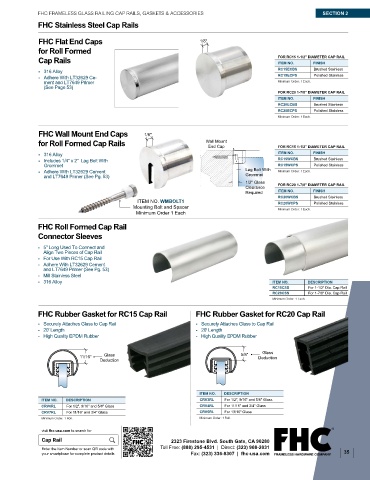

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2 RC20
FHC Stainless Steel Cap Rails

FHC Flat End Caps 1/8"
for Roll Formed
FOR RC15 1-1/2" DIAMETER CAP RAIL
Cap Rails ITEM NO. FINISH
RC15ECBS Brushed Stainless
- 316 Alloy
RC15ECPS Polished Stainless
- Adhere With LT32629 Ce-
ment and LT7649 Primer Minimum Order: 1 Each.
(See Page 53)
FOR RC20 1-7/8" DIAMETER CAP RAIL
ITEM NO. FINISH
RC20ECBS Brushed Stainless
RC20ECPS Polished Stainless
Minimum Order: 1 Each.

FHC Wall Mount End Caps 1/8"
for Roll Formed Cap Rails Wall Mount
End Cap FOR RC15 1-1/2" DIAMETER CAP RAIL
- 316 Alloy ITEM NO. FINISH
- Includes 1/4" x 2" Lag Bolt With RC15WCBS Brushed Stainless
Grommet RC15WCPS Polished Stainless
Lag Bolt With
- Adhere With LT32629 Cement Minimum Order: 1 Each.
and LT7649 Primer (See Pg. 53) Grommet
1/2" Glass
FOR RC20 1-7/8" DIAMETER CAP RAIL
Clearance
Required ITEM NO. FINISH
RC20WCBS Brushed Stainless
ITEM NO. WMBOLT1 RC20WCPS Polished Stainless
Mounting Bolt and Spacer
Minimum Order: 1 Each.
Minimum Order 1 Each
FHC Roll Formed Cap Rail
Connector Sleeves

- 5" Long Used To Connect and
Align Two Pieces of Cap Rail
- For Use With RC15 Cap Rail
- Adhere With LT32629 Cement
and LT7649 Primer (See Pg. 53)
- Mill Stainless Steel
- 316 Alloy ITEM NO. DESCRIPTION
RC15CSS For 1-1/2" Dia. Cap Rail
RC20CSS For 1-7/8" Dia. Cap Rail
Minimum Order: 1 Each.

FHC Rubber Gasket for RC15 Cap Rail FHC Rubber Gasket for RC20 Cap Rail
- Securely Attaches Glass to Cap Rail - Securely Attaches Glass to Cap Rail
- 20' Length - 20' Length
- High Quality EPDM Rubber - High Quality EPDM Rubber

Glass
Glass 5/8"
11/16" Deduction
Deduction

ITEM NO. DESCRIPTION
ITEM NO. DESCRIPTION CRV3RL For 1/2", 9/16" and 5/8" Glass
CRV6RL For 1/2", 9/16" and 5/8" Glass CRV4RL For 11/16" and 3/4" Glass
CRV7RL For 11/16" and 3/4" Glass CRV5RL For 13/16" Glass
Minimum Order: 1 Roll. Minimum Order: 1 Roll.
