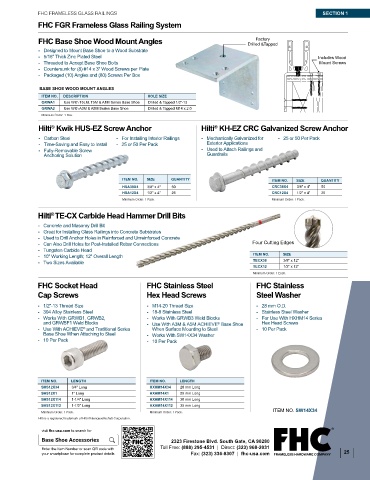

Page 39 - FHC FGR24R Architectural Railing Systems

FHC FRAMELESS GLASS RAILINGS SECTION 1
FHC FGR Frameless Glass Railing System

FHC Base Shoe Wood Mount Angles Drilled &Tapped
Factory
- Designed to Mount Base Shoe to a Wood Substrate
- 5/16" Thick Zinc Plated Steel Includes Wood
- Threaded to Accept Base Shoe Bolts Mount Screws
- Countersunk for (8) #14 x 3" Wood Screws per Plate
- Packaged (10) Angles and (80) Screws Per Box

BASE SHOE WOOD MOUNT ANGLES
ITEM NO. DESCRIPTION HOLE SIZE
GRWA1 Use With T5LM, T5M & A1M Series Base Shoe Drilled & Tapped 1/2"-13
GRWA2 Use With A3M & A5M Series Base Shoe Drilled & Tapped M14 x 2.0
Minimum Order: 1 Box.
Hilti Kwik HUS-EZ Screw Anchor Hilti KH-EZ CRC Galvanized Screw Anchor
®
®
- Carbon Steel - For Installing Interior Railings - Mechanically Galvanized for - 25 or 50 Per Pack
- Time-Saving and Easy to Install - 25 or 50 Per Pack Exterior Applications
- Fully-Removable Screw - Used to Attach Railings and
Anchoring Solution Guardrails

ITEM NO. SIZE QUANTITY ITEM NO. SIZE QUANTITY
HSA38X4 3/8" x 4" 50 CRC38X4 3/8" x 4" 50
HSA12X4 1/2" x 4" 25 CRC12X4 1/2" x 4" 25
Minimum Order: 1 Pack. Minimum Order: 1 Pack.

Hilti TE-CX Carbide Head Hammer Drill Bits
®
- Concrete and Masonry Drill Bit
- Great for Installing Glass Railings into Concrete Substrates
- Used to Drill Anchor Holes in Reinforced and Unreinforced Concrete
- Can Also Drill Holes for Post-Installed Rebar Connections Four Cutting Edges
- Tungsten Carbide Head
- 10" Working Length; 12" Overall Length ITEM NO. SIZE
- Two Sizes Available TECX38 3/8" x 12"
TECX12 1/2" x 12"
Minimum Order: 1 Each.
FHC Socket Head FHC Stainless Steel FHC Stainless
Cap Screws Hex Head Screws Steel Washer

- 1/2"-13 Thread Size - M14-20 Thread Size - 28 mm O.D.
- 304 Alloy Stainless Steel - 18-8 Stainless Steel - Stainless Steel Washer
- Works With GRWB1, GRWB2, - Works With GRWB3 Weld Blocks - For Use With HXHM14 Series
and GRWBF1 Weld Blocks - Use With A3M & A5M ACHIEVE Base Shoe Hex Head Screws
®
- Use With ACHIEVE and Traditional Series When Surface Mounting to Steel - 10 Per Pack
®
Base Shoe When Attaching to Steel - Works With SW14X34 Washer
- 10 Per Pack - 10 Per Pack

ITEM NO. LENGTH ITEM NO. LENGTH
SHS12X34 3/4" Long HXHM14X34 20 mm Long
SHS12X1 1" Long HXHM14X1 25 mm Long
SHS12X114 1-1/4" Long HXHM14X114 30 mm Long
SHS12X112 1-1/2" Long HXHM14X112 35 mm Long
ITEM NO. SW14X34
Minimum Order: 1 Pack. Minimum Order: 1 Pack.
Hilti is a registered trademark of Hilti Aktiengesellschaft Corporation.
visit fhc-usa.com to search for
Base Shoe Accessories 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 25
