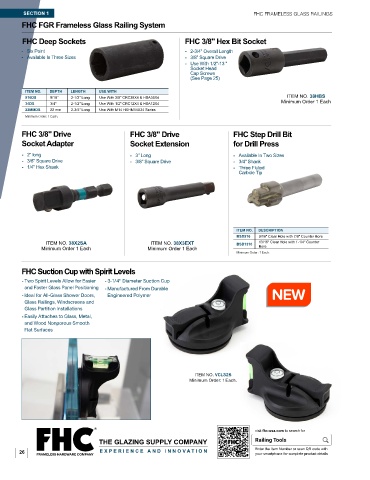

Page 40 - FHC FGR24R Architectural Railing Systems

SECTION 1 FHC FRAMELESS GLASS RAILINGS
FHC FGR Frameless Glass Railing System

FHC Deep Sockets FHC 3/8" Hex Bit Socket
- Six Point - 2-3/4" Overall Length
- Available In Three Sizes - 3/8" Square Drive
- Use With 1/2"-13 "
Socket Head
Cap Screws
(See Page 25)
ITEM NO. DEPTH LENGTH USE WITH
916DS 9/16" 2-1/2" Long Use With 3/8" CRC38X4 & HSA38X4 ITEM NO. 38HBS
34DS 3/4" 2-1/2" Long Use With 1/2" CRC12X4 & HSA12X4 Minimum Order 1 Each
22MMDS 22 mm 2-3/4" Long Use With M14 HXHM14X34 Series
Minimum Order: 1 Each.

FHC 3/8" Drive FHC 3/8" Drive FHC Step Drill Bit
Socket Adapter Socket Extension for Drill Press

- 2" long - 3" Long - Available In Two Sizes
- 3/8" Square Drive - 3/8" Square Drive - 3/4" Shank
- 1/4" Hex Shank - Three Fluted
Carbide Tip

ITEM NO. DESCRIPTION
BSD916 9/16" Clear Hole with 7/8" Counter Bore
ITEM NO. 38X2SA ITEM NO. 38X3EXT BSD1316 13/16" Clear Hole with 1-1/4" Counter
Minimum Order 1 Each Minimum Order 1 Each Bore
Minimum Order: 1 Each.

FHC Suction Cup with Spirit Levels
- Two Spirit Levels Allow for Easier - 3-1/4" Diameter Suction Cup
and Faster Glass Panel Positioning - Manufactured From Durable
- Ideal for All-Glass Shower Doors, Engineered Polymer
Glass Railings, Windscreens and
Glass Partition Installations
- Easily Attaches to Glass, Metal,
and Wood Nonporous Smooth
Flat Surfaces

ITEM NO. VCL325
Minimum Order: 1 Each.

visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Railing Tools

26 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
