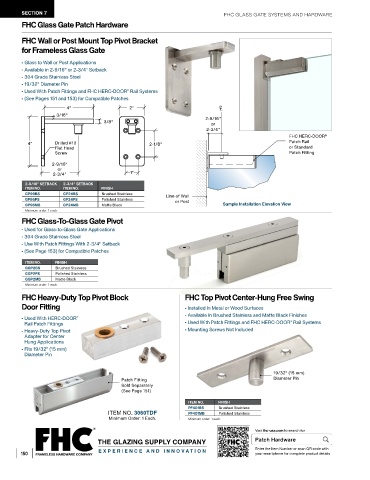

Page 152 - FGR26-Frameless-Glass-Railing

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Glass Gate Patch Hardware

FHC Wall or Post Mount Top Pivot Bracket
for Frameless Glass Gate

- Glass to Wall or Post Applications
- Available in 2-9/16" or 2-3/4" Setback
- 304 Grade Stainless Steel
- 19/32" Diameter Pin
- Used With Patch Fittings and FHC HERC-DOOR Rail Systems
®
- (See Pages 151 and 153) for Compatible Patches
4" 2" C L
3/16" 2-9/16"
3/8" or
2-3/4"
FHC HERC-DOOR
®
4" Drilled #10 2-1/8" Patch Rail
Flat Head or Standard
Screw Patch Fitting
2-9/16"
or
2-3/4" 1"
2-9/16" SETBACK 2-3/4" SETBACK
ITEM NO. ITEM NO. FINISH
GP96BS GP24BS Brushed Stainless Line of Wall
GP96PS GP24PS Polished Stainless or Post
GP96MB GP24MB Matte Black Sample Installation Elevation View
Minimum order: 1 each.
FHC Glass-To-Glass Gate Pivot

- Used for Glass-to-Glass Gate Applications
- 304 Grade Stainless Steel
- Use With Patch Fittings With 2-3/4" Setback
- (See Page 153) for Compatible Patches

ITEM NO. FINISH
GGP2BS Brushed Stainless
GGP2PS Polished Stainless
GGP2MB Matte Black
Minimum order: 1 each.
FHC Heavy-Duty Top Pivot Block FHC Top Pivot Center-Hung Free Swing
Door Fitting - Installed In Metal or Wood Surfaces
- Available In Brushed Stainless and Matte Black Finishes
- Used With HERC-DOOR
®
®
Rail Patch Fittings - Used With Patch Fittings and FHC HERC-DOOR Rail Systems
- Heavy-Duty Top Pivot - Mounting Screws Not Included
Adapter for Center
Hung Applications
- Fits 19/32" (15 mm)
Diameter Pin

19/32" (15 mm)
Patch Fitting Diameter Pin
Sold Separately
(See Page 151)
ITEM NO. FINISH
PF401BS Brushed Stainless
ITEM NO. 3060TDF PF401MB Polished Stainless
Minimum Order: 1 Each. Minimum order: 1 each.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Patch Hardware

150 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
