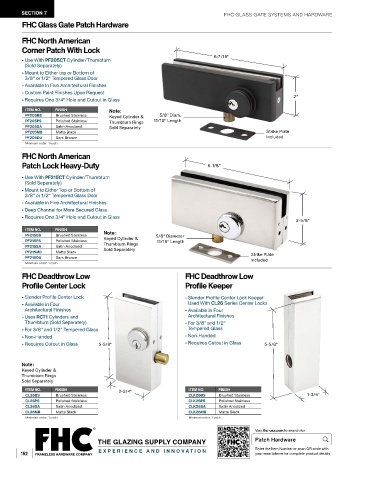

Page 154 - FGR26-Frameless-Glass-Railing

SECTION 7 FHC GLASS GATE SYSTEMS AND HARDWARE
FHC Glass Gate Patch Hardware

FHC North American
Corner Patch With Lock
6-7/16"
- Use With PF205CT Cylinder/Thumbturn
(Sold Separately)
- Mount to Either top or Bottom of
3/8" or 1/2" Tempered Glass Door
- Available In Five Architectural Finishes
- Custom Paint Finishes Upon Request
- Requires One 3/4" Hole and Cutout in Glass 2"
ITEM NO. FINISH Note:
PF205BS Brushed Stainless Keyed Cylinder & 5/8" Diam.
PF205PS Polished Stainless Thumbturn Rings 11/16" Length
PF205SA Satin Anodized Sold Separately
PF205MB Matte Black Strike Plate
PF205DU Dark Bronze Included
Minimum order: 1 each.
FHC North American
Patch Lock Heavy-Duty 6-1/8"

- Use With PF215CT Cylinder/Thumbturn
(Sold Separately)
- Mount to Either Top or Bottom of
3/8" or 1/2" Tempered Glass Door
- Available in Five Architectural Finishes
- Deep Channel for More Secured Glass
- Requires One 3/4" Hole and Cutout in Glass
2-5/8"
ITEM NO. FINISH
PF215BS Brushed Stainless Note: 5/8" Diameter
PF215PS Polished Stainless Keyed Cylinder & 11/16" Length
Thumbturn Rings
PF215SA Satin Anodized Sold Separately
PF215MB Matte Black Strike Plate
PF215DU Dark Bronze Included
Minimum order: 1 each.
FHC Deadthrow Low FHC Deadthrow Low
Profile Center Lock Profile Keeper
- Slender Profile Center Lock - Slender Profile Center Lock Keeper
- Available in Four Used With CL26 Series Center Locks
Architectural Finishes - Available in Four
- Uses RCT1 Cylinders and Architectural Finishes
Thumbturn (Sold Separately) - For 3/8" and 1/2"
- For 3/8" and 1/2" Tempered Glass Tempered Glass
- Non-Handed - Non-Handed
- Requires Cutout in Glass 5-5/8" - Requires Cutout in Glass 5-5/8"

Note:
Keyed Cylinder &
Thumbturn Rings
Sold Separately
ITEM NO. FINISH 2-3/4" ITEM NO. FINISH
CL26BS Brushed Stainless CLK26BS Brushed Stainless 1-3/4"
CL26PS Polished Stainless CLK26PS Polished Stainless
CL26SA Satin Anodized CLK26SA Satin Anodized
CL26MB Matte Black CLK26MB Matte Black
Minimum order: 1 each. Minimum order: 1 each.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Patch Hardware

152 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
