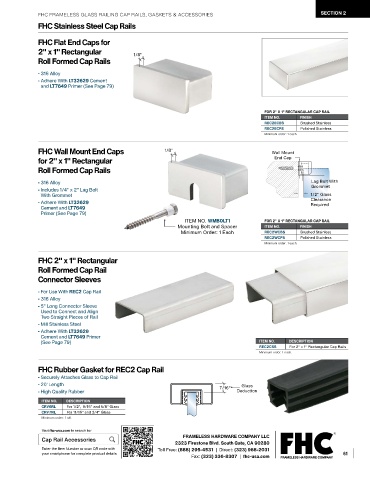

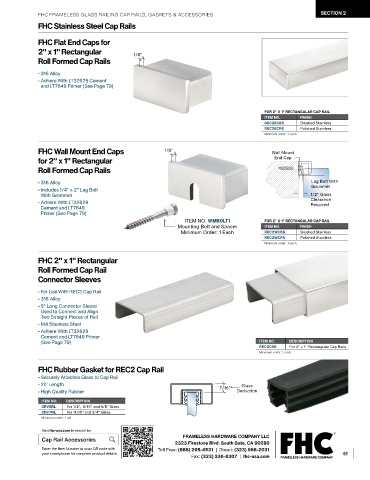

Page 63 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2
FHC Stainless Steel Cap Rails

FHC Flat End Caps for
2" x 1" Rectangular 1/8"
Roll Formed Cap Rails
- 316 Alloy
- Adhere With LT32629 Cement
and LT7649 Primer (See Page 79)
RC20

FOR 2" X 1" RECTANGULAR CAP RAIL
ITEM NO. FINISH
REC2ECBS Brushed Stainless
REC2ECPS Polished Stainless
Minimum order: 1 each.

FHC Wall Mount End Caps 1/8" Wall Mount
for 2" x 1" Rectangular End Cap
Roll Formed Cap Rails

- 316 Alloy Lag Bolt With
RC15 - Includes 1/4" x 2" Lag Bolt 1/2" Glass
Grommet

With Grommet
- Adhere With LT32629 Clearance
Required
Cement and LT7649
Primer (See Page 79)
ITEM NO. WMB0LT1 FOR 2" X 1" RECTANGULAR CAP RAIL
Mounting Bolt and Spacer ITEM NO. FINISH
Minimum Order: 1 Each REC2WCBS Brushed Stainless
REC2WCPS Polished Stainless
Minimum order: 1 each.

FHC 2" x 1" Rectangular
Roll Formed Cap Rail
Connector Sleeves

- For Use With REC2 Cap Rail
- 316 Alloy
- 5" Long Connector Sleeve
Used to Connect and Align
Two Straight Pieces of Rail
- Mill Stainless Steel
- Adhere With LT32629
Cement and LT7649 Primer
(See Page 79) ITEM NO. DESCRIPTION
REC2CSS For 2" x 1" Rectangular Cap Rails
Minimum order: 1 each.

FHC Rubber Gasket for REC2 Cap Rail
- Securely Attaches Glass to Cap Rail
- 20' Length Glass
- High Quality Rubber 7/16" Deduction
ITEM NO. DESCRIPTION
CRV6RL For 1/2", 9/16" and 5/8" Glass 11/16, 3/4
CRV7RL For 11/16" and 3/4" Glass
Minimum order: 1 roll.
Visit fhc-usa.com to search for
Cap Rail Accessories FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 61
Fax: (323) 336-8307 | fhc-usa.com
1/2,9/16,11/16
