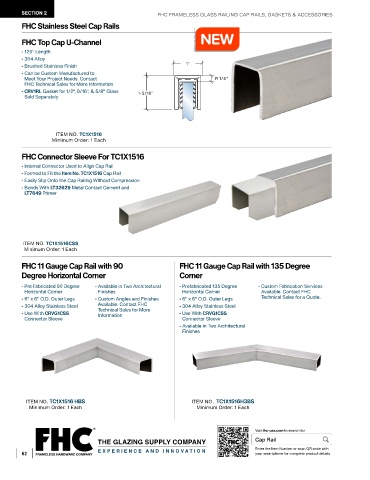

Page 64 - FGR26-Frameless-Glass-Railing
P. 64
SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Stainless Steel Cap Rails
FHC Top Cap U-Channel
- 120" Length
- 304 Alloy
- Brushed Stainless Finish 1"
- Can be Custom Manufactured to
Meet Your Project Needs. Contact R 1/4"
FHC Technical Sales for More Information
- CRV1RL Gasket for 1/2", 9/16", & 5/8" Glass 1-5/16"
Sold Separately
ITEM NO. TC1X1516
Minimum Order: 1 Each
FHC Connector Sleeve For TC1X1516
- Internal Connector Used to Align Cap Rail
- Formed to Fit the Item No. TC1X1516 Cap Rail
- Easily Slip Onto the Cap Railing Without Compression
- Bonds With LT32629 Metal Contact Cement and
LT7649 Primer
ITEM NO. TC1X1516CSS
Minimum Order: 1 Each
FHC 11 Gauge Cap Rail with 90 FHC 11 Gauge Cap Rail with 135 Degree
Degree Horizontal Corner Corner
- Pre Fabricated 90 Degree - Available in Two Architectural - Prefabricated 135 Degree - Custom Fabrication Services
Horizontal Corner Finishes Horizontal Corner Available. Contact FHC
- 6" x 6" O.D. Outer Legs - Custom Angles and Finishes - 6" x 6" O.D. Outer Legs Technical Sales for a Quote.
- 304 Alloy Stainless Steel Available. Contact FHC - 304 Alloy Stainless Steel
Technical Sales for More
- Use With CRVG1CSS Information - Use With CRVG1CSS
Connector Sleeve Connector Sleeve
- Available in Two Architectural
Finishes
ITEM NO. TC1X1516 HBS ITEM NO. TC1X1516H3BS
Minimum Order: 1 Each Minimum Order: 1 Each
Visit fhc-usa.com to search for
Cap Rail
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
62 EXPERIENCE AND INNOV A TION your smartphone for complete product details
