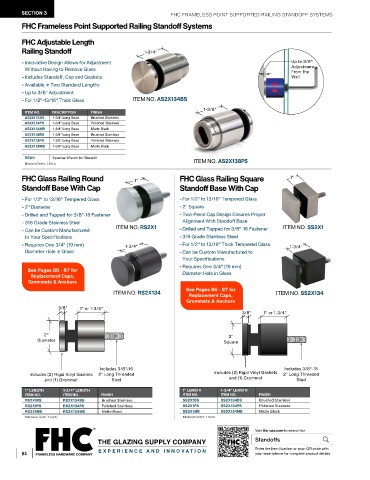

Page 86 - FGR26-Frameless-Glass-Railing

SECTION 3 FHC FRAMELESS POINT SUPPORTED RAILING STANDOFF SYSTEMS
FHC Frameless Point Supported Railing Standoff Systems

FHC Adjustable Length
Railing Standoff 1-3/4"
- Innovative Design Allows for Adjustment Up to 3/8"
Without Having to Remove Glass Adjustment
From the
- Includes Standoff, Cap and Gaskets Wall
- Available in Two Standard Lengths
- Up to 3/8" Adjustment
- For 1/2"-13/16" Thick Glass ITEM NO. AS2X134BS
1-3/8"
ITEM NO. DESCRIPTION FINISH
AS2X134BS 1-3/4" Long Base Brushed Stainless
AS2X134PS 1-3/4" Long Base Polished Stainless
AS2X134MB 1-3/4" Long Base Matte Black
AS2X138BS 1-3/8" Long Base Brushed Stainless
AS2X138PS 1-3/8" Long Base Polished Stainless
AS2X138MB 1-3/8" Long Base Matte Black
RSW2 Spanner Wrench for Standoff
ITEM NO. AS2X138PS
Minimum Order: 1 Each.
FHC Glass Railing Round 1" FHC Glass Railing Square 1"
Standoff Base With Cap Standoff Base With Cap
- For 1/2" to 13/16" Tempered Glass - For 1/2" to 13/16" Tempered Glass
- 2" Diameter - 2" Square
- Drilled and Tapped for 3/8"-16 Fastener - Two-Piece Cap Design Ensures Proper
- 316 Grade Stainless Steel Alignment With Standoff Base
- Can be Custom Manufactured ITEM NO. RS2X1 - Drilled and Tapped for 3/8"-16 Fastener ITEM NO. SS2X1
to Your Specifications - 316 Grade Stainless Steel
- Requires One 3/4" (19 mm) 1-3/4" - For 1/2" to 13/16" Thick Tempered Glass 1-3/4"
Diameter Hole in Glass - Can be Custom Manufactured to
Your Specifications
- Requires One 3/4" (19 mm)
See Pages 86 - 87 for Diameter Hole in Glass
Replacement Caps,
Grommets & Anchors
See Pages 86 - 87for
ITEM NO. RS2X134 Replacement Caps, ITEM NO. SS2X134
Grommets & Anchors
3/8" 1" or 1-3/4"
3/8" 1" or 1-3/4"

2" 2"
Diameter Square

Includes 3/8"-16 Includes 3/8"-16
Includes (2) Rigid Vinyl Gaskets 2" Long Threaded Includes (2) Rigid Vinyl Gaskets 2" Long Threaded
and (1) Grommet Stud and (1) Grommet Stud
1" LENGTH 1-3/4" LENGTH 1" LENGTH 1-3/4" LENGTH
ITEM NO. ITEM NO. FINISH ITEM NO. ITEM NO. FINISH
RS2X1BS RS2X134BS Brushed Stainless SS2X1BS SS2X134BS Brushed Stainless
RS2X1PS RS2X134PS Polished Stainless SS2X1PS SS2X134PS Polished Stainless
RS2X1MB RS2X134MB Matte Black SS2X1MB SS2X134MB Matte Black
Minimum order: 1 each. Minimum order: 1 each.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Standoffs

84 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
