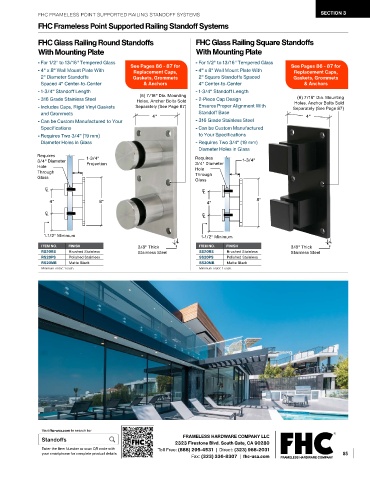

FHC FRAMELESS POINT SUPPORTED RAILING STANDOFF SYSTEMS SECTION 3
FHC Frameless Point Supported Railing Standoff Systems

FHC Glass Railing Round Standoffs FHC Glass Railing Square Standoffs
With Mounting Plate With Mounting Plate
- For 1/2" to 13/16" Tempered Glass - For 1/2" to 13/16" Tempered Glass
- 4" x 8" Wall Mount Plate With See Pages 86 - 87 for - 4" x 8" Wall Mount Plate With See Pages 86 - 87 for
Replacement Caps,
Replacement Caps,
2" Diameter Standoffs Gaskets, Grommets 2" Square Standoffs Spaced Gaskets, Grommets
Spaced 4" Center-to-Center & Anchors 4" Center-to-Center & Anchors
- 1-3/4" Standoff Length - 1-3/4" Standoff Length
(6) 7/16" Dia. Mounting
(6) 7/16" Dia. Mounting
- 316 Grade Stainless Steel Holes. Anchor Bolts Sold - 2-Piece Cap Design Holes. Anchor Bolts Sold
- Includes Caps, Rigid Vinyl Gaskets Separately (See Page 87) Ensures Proper Alignment With Separately (See Page 87)
and Grommets 4" Standoff Base 4"
- Can be Custom Manufactured to Your - 316 Grade Stainless Steel
Specifications - Can be Custom Manufactured
- Requires Two 3/4" (19 mm) to Your Specifications
Diameter Holes in Glass - Requires Two 3/4" (19 mm)
Diameter Holes in Glass
Requires Requires
3/4" Diameter 1-3/4" 3/4" Diameter 1-3/4"
Hole Projection Hole
Through Through
Glass Glass
C L C L

4" 8" 4" 8"
C L C L

1-1/2" Minimum 1-1/2" Minimum
ITEM NO. FINISH 3/8" Thick ITEM NO. FINISH 3/8" Thick
RS20BS Brushed Stainless Stainless Steel SS20BS Brushed Stainless Stainless Steel
RS20PS Polished Stainless SS20PS Polished Stainless
RS20MB Matte Black SS20MB Matte Black
Minimum order: 1 each. Minimum order: 1 each.

Visit fhc-usa.com to search for
Standoffs FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 85
