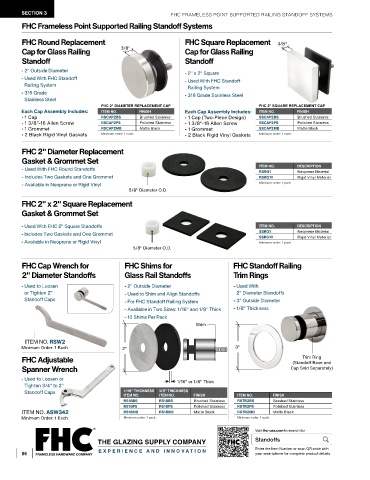

Page 88 - FGR26-Frameless-Glass-Railing

SECTION 3 FHC FRAMELESS POINT SUPPORTED RAILING STANDOFF SYSTEMS
FHC Frameless Point Supported Railing Standoff Systems

FHC Round Replacement FHC Square Replacement 3/8"
Cap for Glass Railing 3/8" Cap for Glass Railing
Standoff Standoff
- 2" Outside Diameter - 2" x 2" Square
- Used With FHC Standoff - Used With FHC Standoff
Railing System Railing System
- 316 Grade - 316 Grade Stainless Steel
Stainless Steel
FHC 2" DIAMETER REPLACEMENT CAP FHC 2" SQUARE REPLACEMENT CAP
Each Cap Assembly Includes: ITEM NO. FINISH Each Cap Assembly Includes: ITEM NO. FINISH
• 1 Cap RSCAP2BS Brushed Stainless • 1 Cap (Two-Piece Design) SSCAP2BS Brushed Stainless
• 1 3/8"-16 Allen Screw RSCAP2PS Polished Stainless • 1 3/8"-16 Allen Screw SSCAP2PS Polished Stainless
• 1 Grommet RSCAP2MB Matte Black • 1 Grommet SSCAP2MB Matte Black
• 2 Black Rigid Vinyl Gaskets Minimum order: 1 each. • 2 Black Rigid Vinyl Gaskets Minimum order: 1 each.

FHC 2" Diameter Replacement
Gasket & Grommet Set
- Used With FHC Round Standoffs ITEM NO. DESCRIPTION
Neoprene Material
RSRG1
- Includes Two Gaskets and One Grommet RSRG1V Rigid Vinyl Material
- Available in Neoprene or Rigid Vinyl Minimum order: 1 pack.
5/8" Diameter O.D.
FHC 2" x 2" Square Replacement
Gasket & Grommet Set

- Used With FHC 2" Square Standoffs ITEM NO. DESCRIPTION
- Includes Two Gaskets and One Grommet SSRG1 Neoprene Material
SSRG1V
Rigid Vinyl Material
- Available in Neoprene or Rigid Vinyl Minimum order: 1 pack.
5/8" Diameter O.D.
FHC Cap Wrench for FHC Shims for FHC Standoff Railing
2" Diameter Standoffs Glass Rail Standoffs Trim Rings
- Used to Loosen - 2" Outside Diameter - Used With
or Tighten 2" - Used to Shim and Align Standoffs 2" Diameter Standoffs
Standoff Caps - For FHC Standoff Railing System - 3" Outside Diameter
- Available in Two Sizes: 1/16" and 1/8" Thick - 1/8" Thickness
- 10 Shims Per Pack
Shim

ITEM NO. RSW2
Minimum Order: 1 Each. 2" 3"
Trim Ring
FHC Adjustable (Standoff Base and
Spanner Wrench Cap Sold Separately)
- Used to Loosen or 1/16" or 1/8" Thick
Tighten 3/4" to 2"
Standoff Caps 1/16" THICKNESS 1/8" THICKNESS
ITEM NO. ITEM NO. FINISH ITEM NO. FINISH
RS16BS RS18BS Brushed Stainless RSTR2BS Brushed Stainless
RS16PS RS18PS Polished Stainless RSTR2PS Polished Stainless
ITEM NO. ASW342 RS16MB RS18MB Matte Black RSTR2MB Matte Black
Minimum Order: 1 Each. Minimum order: 1 pack. Minimum order: 1 each.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Standoffs

86 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
