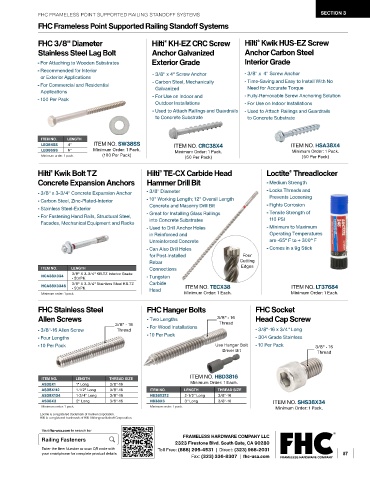

FHC FRAMELESS POINT SUPPORTED RAILING STANDOFF SYSTEMS SECTION 3
FHC Frameless Point Supported Railing Standoff Systems

®
FHC 3/8" Diameter Hilti KH-EZ CRC Screw Hilti Kwik HUS-EZ Screw
®
Stainless Steel Lag Bolt Anchor Galvanized Anchor Carbon Steel
- For Attaching to Wooden Substrates Exterior Grade Interior Grade
- Recommended for Interior - 3/8" x 4" Screw Anchor
or Exterior Applications - 3/8" x 4" Screw Anchor
- For Commercial and Residential - Carbon Steel, Mechanically - Time-Saving and Easy to Install With No
Need for Accurate Torque
Applications Galvanized
- 100 Per Pack - For Use on Indoor and - Fully-Removable Screw Anchoring Solution
Outdoor Installations - For Use on Indoor Installations
- Used to Attach Railings and Guardrails - Used to Attach Railings and Guardrails
to Concrete Substrate to Concrete Substrate

ITEM NO. LENGTH
LB384SS 4" ITEM NO. SW38SS ITEM NO. CRC38X4 ITEM NO. HSA38X4
LB386SS 6" Minimum Order: 1 Pack. Minimum Order: 1 Pack. Minimum Order: 1 Pack.
Minimum order: 1 pack. (100 Per Pack) (50 Per Pack) (50 Per Pack)

Hilti Kwik Bolt TZ Hilti TE-CX Carbide Head Loctite Threadlocker
®
®
®
Concrete Expansion Anchors Hammer Drill Bit - Medium Strength
- 3/8" x 3-3/4" Concrete Expansion Anchor - 3/8" Diameter - Locks Threads and
- Carbon Steel, Zinc-Plated-Interior - 10" Working Length; 12" Overall Length Prevents Loosening
- Stainless Steel-Exterior Concrete and Masonry Drill Bit - Fights Corrosion
- Tensile Strength of
- For Fastening Hand Rails, Structural Steel, - Great for Installing Glass Railings 110 PSI
Facades, Mechanical Equipment and Racks into Concrete Substrates
- Used to Drill Anchor Holes - Minimum to Maximum
in Reinforced and Operating Temperatures
Unreinforced Concrete are -65° F to + 300° F
- Can Also Drill Holes - Comes in a 9g Stick
for Post-Installed Four
Rebar Cutting
ITEM NO. LENGTH Connections Edges
3/8" X 3-3/4" KB-TZ Interior Grade
HCA38X334 - Tungsten
- 50/PK
3/8" X 3-3/4" Stainless Steel KB-TZ Carbide
HCA38X334S - 50/PK Head ITEM NO. TECX38 ITEM NO. LT37684
Minimum order: 1 pack. Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Stainless Steel FHC Hanger Bolts FHC Socket
Allen Screws - Two Lengths 3/8" - 16 Head Cap Screw
3/8" - 16 Thread
- 3/8"-16 Allen Screw Thread - For Wood Installations - 3/8"-16 x 3/4" Long
- Four Lengths - 10 Per Pack - 304 Grade Stainless
- 10 Per Pack Use Hanger Bolt - 10 Per Pack 3/8" - 16
Driver Bit Thread

ITEM NO. HBD3816
ITEM NO. LENGTH THREAD SIZE
AS38X1 1" Long 3/8"-16 Minimum Order: 1 Each.
AS38X112 1-1/2" Long 3/8"-16 ITEM NO. LENGTH THREAD SIZE
AS38X134 1-3/4" Long 3/8"-16 HB38X212 2-1/2" Long 3/8"-16
AS38X2 2" Long 3/8"-16 HB38X3 3" Long 3/8"-16 ITEM NO. SHS38X34
Minimum order: 1 pack. Minimum order: 1 pack. Minimum Order: 1 Pack.
Loctite is a registered trademark of Henkel corporation.
Hilti is a registered trademark of Hilti Aktiengesellschaft Corporation.
