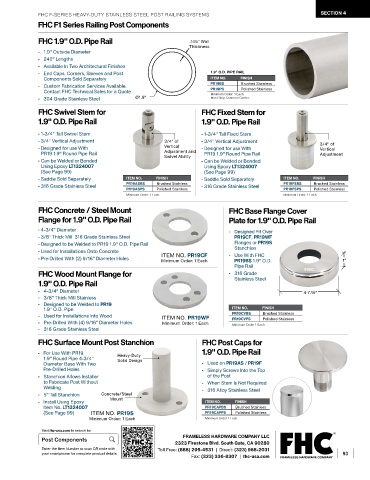

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4
FHC F1 Series Railing Post Components

FHC 1.9" O.D. Pipe Rail .145" Wall
Thickness
- 1.9" Outside Diameter
- 240" Lengths
- Available In Two Architectural Finishes
- End Caps, Corners, Sleeves and Post 1.9" O.D. PIPE RAIL
Components Sold Separately ITEM NO. FINISH
- Custom Fabrication Services Available. PR19BS Brushed Stainless
Contact FHC Technical Sales for a Quote PR19PS Polished Stainless
Minimum Order: 1 Each.
- 304 Grade Stainless Steel Ø1.9" Must Ship Common Carrier.
FHC Swivel Stem for FHC Fixed Stem for
1.9" O.D. Pipe Rail 1.9" O.D. Pipe Rail

- 1-3/4" Tall Swivel Stem - 1-3/4" Tall Fixed Stem
- 3/4" Vertical Adjustment 3/4" of - 3/4" Vertical Adjustment 3/4" of
- Designed for use With Vertical - Designed for use With Vertical
PR19 1.9" Round Pipe Rail Adjustment and PR19 1.9" Round Pipe Rail Adjustment
- Can be Welded or Bonded Swivel Ability - Can be Welded or Bonded
Using Epoxy LT1324007 Using Epoxy LT1324007
(See Page 99) (See Page 99)
- Saddle Sold Separately ITEM NO. FINISH - Saddle Sold Separately ITEM NO. FINISH
- 316 Grade Stainless Steel PR19ASBS Brushed Stainless - 316 Grade Stainless Steel PR19FSBS Brushed Stainless
PR19ASPS Polished Stainless PR19FSPS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Concrete / Steel Mount FHC Base Flange Cover
Flange for 1.9" O.D. Pipe Rail Plate for 1.9" O.D. Pipe Rail

- 4-3/4" Diameter - Designed Fit Over
- 3/8" Thick Mill 316 Grade Stainless Steel PR19CF, PR19WF
- Designed to be Welded to PR19 1.9" O.D. Pipe Rail Flanges or PR19S
Stanchion
- Used for Installations Onto Concrete
- Pre-Drilled With (2) 9/16" Diameter Holes ITEM NO. PR19CF - Use With FHC 1"
PR19BS 1.9" O.D.
Minimum Order: 1 Each
Pipe Rail
FHC Wood Mount Flange for - 316 Grade
Stainless Steel
1.9" O.D. Pipe Rail
- 4-3/4" Diameter 4-7/8"
- 3/8" Thick Mill Stainless
- Designed to be Welded to PR19
1.9" O.D. Pipe ITEM NO. FINISH
- Used for Installations Into Wood ITEM NO. PR19WF PR19CVBS Brushed Stainless
- Pre-Drilled With (4) 9/16" Diameter Holes Minimum Order: 1 Each PR19CVPS Polished Stainless
Minimum Order 1 Each
- 316 Grade Stainless Steel
FHC Surface Mount Post Stanchion FHC Post Caps for
- For Use With PR19 1.9" O.D. Pipe Rail
1.9" Round Pipe 4-3/4" Heavy-Duty
Diameter Base With Two Solid Design - Used on PR19AS / PR19F
Pre-Drilled Holes - Simply Screws Into the Top
- Stanchion Allows Installer of the Post
to Fabricate Post Without - When Stem Is Not Required
Welding - 316 Alloy Stainless Steel
- 5" Tall Stanchion Concrete/Steel
- Install Using Epoxy Mount ITEM NO. FINISH
Item No. LT1324007 PR19CAPBS Brushed Stainless
(See Page 99) ITEM NO. PR19S PR19CAPPS Polished Stainless
Minimum Order: 1 Each Minimum Order 1 Each
