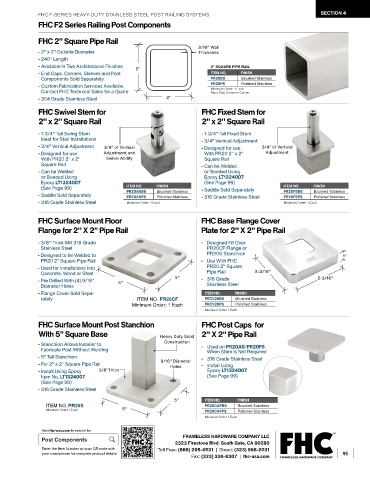

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4
FHC F2 Series Railing Post Components

FHC 2" Square Pipe Rail
3/16" Wall
- 2" x 2" Outside Diameter Thickness
- 240" Length
- Available In Two Architectural Finishes 2" 2" SQUARE PIPE RAIL
- End Caps, Corners, Sleeves and Post ITEM NO. FINISH
Components Sold Separately PR20BS Brushed Stainless
- Custom Fabrication Services Available. PR20PS Polished Stainless
Contact FHC Technical Sales for a Quote Minimum Order: 1 Each.
Must Ship Common Carrier.
- 304 Grade Stainless Steel 2"
FHC Swivel Stem for FHC Fixed Stem for
2" x 2" Square Rail 2" x 2" Square Rail

- 1-3/4" Tall Swing Stem - 1-3/4" Tall Fixed Stem
Ideal for Stair Installations - 3/4" Vertical Adjustment
- 3/4" Vertical Adjustment 3/4" of Vertical - Designed for use 3/4" of Vertical
- Designed for use Adjustment and With PR20 2" x 2" Adjustment
With PR20 2" x 2" Swivel Ability Square Rail
Square Rail - Can be Welded
- Can be Welded or Bonded Using
or Bonded Using Epoxy LT1324007
Epoxy LT1324007 (See Page 99)
(See Page 99) ITEM NO. FINISH - Saddle Sold Separately ITEM NO. FINISH
- Saddle Sold Separately PR20ASBS Brushed Stainless - 316 Grade Stainless Steel PR20FSBS Brushed Stainless
Polished Stainless
Polished Stainless
PR20ASPS
PR20FSPS
- 316 Grade Stainless Steel Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Surface Mount Floor FHC Base Flange Cover
Flange for 2" X 2" Pipe Rail Plate for 2" X 2" Pipe Rail
- 3/8" Thick Mill 316 Grade - Designed Fit Over
Stainless Steel PR20CF Flange or
- Designed to be Welded to PR20S Stanchion 1"
PR20 2" Square Pipe Rail - Use With FHC
- Used for Installations Into PR20 2" Square
Concrete, Wood or Steel Pipe Rail 5-3/16"
- Pre Drilled With (4) 9/16" 5" 5" - 316 Grade 5-3/16"
Diameter Holes Stainless Steel
- Flange Cover Sold Sepa- ITEM NO. FINISH
rately ITEM NO. PR20CF PRCV20BS Brushed Stainless
Minimum Order: 1 Each PRCV20PS Polished Stainless
Minimum Order 1 Each
FHC Surface Mount Post Stanchion FHC Post Caps for
With 5" Square Base Heavy Duty Solid 2" X 2" Pipe Rail
- Stanchion Allows Installer to Construction - Used on PR20AS/PR20FS
Fabricate Post Without Welding When Stem Is Not Required
- 5" Tall Stanchion - 316 Grade Stainless Steel
- For 2" x 2" Square Pipe Rail 9/16" Diameter - Install Using
Holes
- Install Using Epoxy 3/8"Thick Epoxy LT1324007
Item No. LT1324007 (See Page 99)
(See Page 99)
- 316 Grade Stainless Steel
5" ITEM NO. FINISH
ITEM NO. PR20S PR20CAPBS Brushed Stainless
Minimum Order 1 Each 5" PR20CAPPS Polished Stainless
Minimum Order 1 Each
