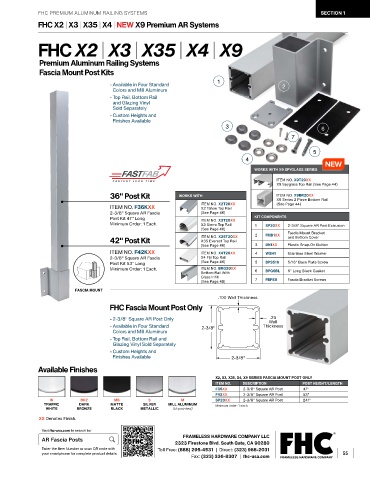

Page 57 - FHC-FARW26-Premium-Aluminum-Railing-Systems

FHC PREMIUM ALUMINUM RAILING SYSTEMS SECTION 1
FHC X2 | X3 | X35 | X4 | NEW X9 Premium AR Systems

FHC X2 | X3 | X35 | X4 | X9

Premium Aluminum Railing Systems
Fascia Mount Post Kits

- Available in Four Standard 1 2
Colors and Mill Aluminum 2
- Top Rail, Bottom Rail
and Glazing Vinyl
Sold Separately
- Custom Heights and
Finishes Available
3 6
7

5
4
WORKS WITH X9 SPYGLASS SERIES

ITEM NO. X9T20XX
X9 Spyglass Top Rail (See Page 44)
36" Post Kit WORKS WITH ITEM NO. X9BR20XX
X9 Series 2 Piece Bottom Rail
ITEM NO. X2T20XX (See Page 44)
ITEM NO. F36KXX X2 Tahoe Top Rail
2-3/8" Square AR Fascia (See Page 46)
Post Kit 47" Long ITEM NO. X3T20XX KIT COMPONENTS
Minimum Order: 1 Each. X3 Sierra Top Rail 1 SP20XX 2-3/8" Square AR Post Extrusion
(See Page 46) Fascia Mount Bracket
42" Post Kit ITEM NO. X35T20XX 2 FMB1XX and Bottom Cover
X35 Everest Top Rail
(See Page 46) 3 BN1XX Plastic Snap-On Button
ITEM NO. F42KXX ITEM NO. X4T20XX 4 WSH1 Stainless Steel Washer
2-3/8" Square AR Fascia X4 Fiji Top Rail
Post Kit 53" Long (See Page 46) 5 BPS516 5/16" Base Plate Screw
Minimum Order: 1 Each. ITEM NO. BRG20XX
Bottom Rail With 6 BPG6BL 6" Long Black Gasket
Glass Infill
(See Page 48) 7 FBPS8 Fascia Bracket Screws
FASCIA MOUNT
.100 Wall Thickness
FHC Fascia Mount Post Only

.25
- 2-3/8" Square AR Post Only Wall
- Available in Four Standard 2-3/8" Thickness
Colors and Mill Aluminum
- Top Rail, Bottom Rail and
Glazing Vinyl Sold Separately
- Custom Heights and
Finishes Available 2-3/8"
Available Finishes
X2, X3, X35, X4, X9 SERIES FASCIA MOUNT POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
F36XX 2-3/8" Square AR Post 47"
F42XX 2-3/8" Square AR Post 53"
W BRZ MB S M SP20XX 2-3/8" Square AR Post 241"
TRAFFIC DARK MATTE SILVER MILL ALUMINUM Minimum order: 1 each.
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
Visit fhc-usa.com to search for
AR Fascia Posts FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 55
Fax: (323) 336-8307 | fhc-usa.com
