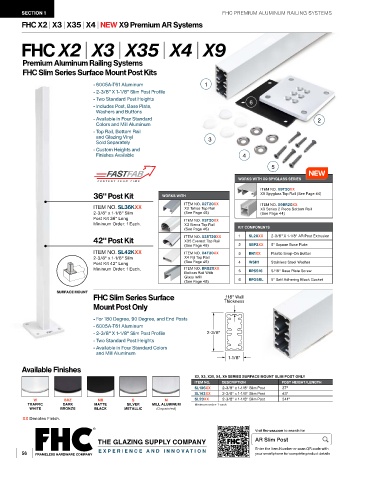

Page 58 - FHC-FARW26-Premium-Aluminum-Railing-Systems

SECTION 1 FHC PREMIUM ALUMINUM RAILING SYSTEMS
|
X3

|
|
X4
|
X35
NEW
stems
FHC X2
FHC X2 | X3 | X35 | X4 | NEW X9 Premium AR Systems
R Sy
X9 Premium A
FHC X2 | X3 | X35 | X4 | X9
Premium Aluminum Railing Systems
FHC Slim Series Surface Mount Post Kits
- 6005A-T61 Aluminum 1
- 2-3/8" X 1-1/8" Slim Post Profile
- Two Standard Post Heights 6
- Includes Post, Base Plate,
Washers and Buttons
- Available in Four Standard 2
Colors and Mill Aluminum
- Top Rail, Bottom Rail
and Glazing Vinyl 3
Sold Separately
- Custom Heights and
Finishes Available 4
5
WORKS WITH X9 SPYGLASS SERIES
ITEM NO. X9T20XX
36" Post Kit WORKS WITH X9 Spyglass Top Rail (See Page 44)

ITEM NO. X2T20XX ITEM NO. X9BR20XX
ITEM NO. SL36KXX X2 Tahoe Top Rail X9 Series 2 Piece Bottom Rail
2-3/8" x 1-1/8" Slim (See Page 46) (See Page 44)
Post Kit 36" Long ITEM NO. X3T20XX
Minimum Order: 1 Each. X3 Sierra Top Rail
(See Page 46) KIT COMPONENTS
42" Post Kit ITEM NO. X35T20XX 1 SL20XX 2-3/8" X 1-1/8" AR Post Extrusion
X35 Everest Top Rail
(See Page 46) 2 SBP2XX 5" Square Base Plate
ITEM NO. SL42KXX ITEM NO. X4T20XX 3 BN1XX Plastic Snap-On Button
2-3/8" x 1-1/8" Slim X4 Fiji Top Rail
Post Kit 42" Long (See Page 46) 4 WSH1 Stainless Steel Washer
Minimum Order: 1 Each. ITEM NO. BRG20XX
Bottom Rail With 5 BPS516 5/16" Base Plate Screw
Glass Infill
(See Page 48) 6 BPG5BL 5" Self Adhering Black Gasket
SURFACE MOUNT
FHC Slim Series Surface Thickness
.118" Wall
Mount Post Only
- For 180 Degree, 90 Degree, and End Posts
- 6005A-T61 Aluminum
- 2-3/8" X 1-1/8" Slim Post Profile 2-3/8"
- Two Standard Post Heights
- Available in Four Standard Colors
and Mill Aluminum
1-1/8"
Available Finishes
X2, X3, X35, X4, X9 SERIES SURFACE MOUNT SLIM POST ONLY
ITEM NO. DESCRIPTION POST HEIGHT/LENGTH
SL136XX 2-3/8" x 1-1/8" Slim Post 37"
SL142XX 2-3/8" x 1-1/8" Slim Post 43"
W BRZ MB S M SL20XX 2-3/8" x 1-1/8" Slim Post 241"
TRAFFIC DARK MATTE SILVER MILL ALUMINUM Minimum order: 1 each.
WHITE BRONZE BLACK METALLIC (Unpainted)
XX Denotes Finish.
Visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY AR Slim Post

56 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
