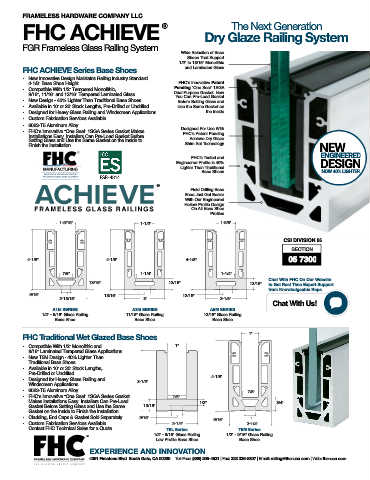

Page 4 - FHCRS01 Architectural Railing Systems Brochure

FRAMELESS HARDWARE COMPANY LLC
The Next Generation
FHC ACHIEVE ® Dry Glaze Railing System

FGR Frameless Glass Railing System
Wide Selection of Base
Shoes That Support
1/2" to 13/16" Monolithic
FHC ACHIEVE Series Base Shoes and Laminated Glass
- New Innovative Design Maintains Railing Industry Standard
4-1/8" Base Shoe Height FHC’s Innovative Patent
Pending “One Seal” 1SGA
- Compatible With 1/2" Tempered Monolithic, Dual Purpose Gasket. Now
9/16", 11/16" and 13/16" Tempered Laminated Glass
You Can Pre-Load Gasket
- New Design - 40% Lighter Than Traditional Base Shoes Before Setting Glass and
- Available in 10' or 20' Stock Lengths, Pre-Drilled or Undrilled Use the Same Gasket on
- Designed for Heavy Glass Railing and Windscreen Applications the Inside
- Custom Fabrication Services Available
- 6063-T5 Aluminum Alloy
Designed For Use With
- FHC’s Innovative “One Seal” 1SGA Series Gasket Makes FHC’s Patent Pending
Installations Easy. Installers Can Pre-Load Gasket Before Achieve Dry Glaze
Setting Glass and Use the Same Gasket on the Inside to Shim Set Technology
Finish the Installation NEW
FHC’s Tested and ENGINEERED
Engineered Profile is 40% DESIGN
Lighter Than Traditional
Base Shoes NOW 40% LIGHTER

™ ®
Field Drilling Base
Shoe Just Got Easier
With Our Engineered Fast & Easy Installation
Hollow Profile Design
On All Base Shoe
Profiles
1-5/16" 1-1/2" 1-5/8"

CSI DIVISION 05
SECTION
4-1/8" 4-1/8" 4-1/8" 05 7300

7/8" 1-1/4" 1-1/4"
Chat With FHC On Our Website
13/16" 13/16" 13/16" to Get Real Time Expert Support
from Knowledgeable Reps
9/16" 13/16" 13/16"
2-13/16" 3" 3-1/8"
Chat With Us!
A1M SERIES A3M SERIES A5M SERIES
1/2" - 9/16" Glass Railing 11/16" Glass Railing 13/16" Glass Railing
Base Shoe Base Shoe Base Shoe AM5
AM1 AM3 TRADITIONAL
1"
FHC Traditional Wet Glazed Base Shoes
- Compatible With 1/2" Monolithic and 1"

9/16" Laminated Tempered Glass Applications
- New T5M Design - 40% Lighter Than
Traditional Base Shoes
- Available in 10’ or 20’ Stock Lengths,
Pre-Drilled or Undrilled
4-1/8"
- Designed for Heavy Glass Railing and 3-1/2"
Windscreen Applications
- 6063-T5 Aluminum Alloy 7/8"
- FHC’s Innovative “One Seal” 1SGA Series Gasket 7/8"
Makes Installations Easy. Installers Can Pre-Load 1/2" 3/4"
Gasket Before Setting Glass and Use the Same 13/16"
Gasket on the Inside to Finish the Installation
- Cladding, End Caps & Gasket Sold Separately 9/16"
9/16"
- Custom Fabrication Services Available. 2-1/4" 2-1/2"
Contact FHC Technical Sales for a Quote T5L Series T5M Series
® 1/2" - 9/16" Glass Railing 1/2" - 9/16" Glass Railing
Base Shoe
Low Profile Base Shoe
AM5
AM3
TRADITIONAL
AM 1 AM 3 AM 5 TRADITIONAL
AM1
