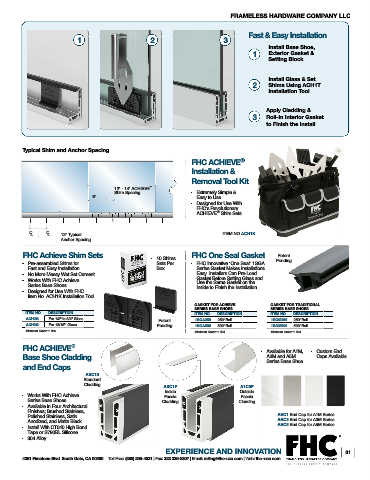

Page 5 - FHCRS01 Architectural Railing Systems Brochure

FRAMELESS HARDWARE COMPANY LLC

Fast & Easy Installation
1 2 3
Install Base Shoe,
1 Exterior Gasket &
Setting Block

Install Glass & Set
2 Shims Using ACH1T
Installation Tool

Apply Cladding &
3 Roll-In Interior Gasket
to Finish the Install

Typical Shim and Anchor Spacing
®
FHC ACHIEVE
Installation &
Removal Tool Kit
™
12" - 14" ACHIEVE
Shim Spacing - Extremely Simple &
6" Easy to Use
- Designed for Use With
FHC’s Revolutionary
ACHIEVE® Shim Sets

C L C L 12" Typical ITEM NO ACH1K
Anchor Spacing

FHC Achieve Shim Sets - 10 Shims FHC One Seal Gasket Patent
- Pre-assembled Shims for Sets Per - FHC Innovative “One Seal” 1SGA Pending
Fast and Easy Installation Box Series Gasket Makes Installations
- No More Messy Wet Set Cement Easy. Installers Can Pre-Load
- Works With FHC Achieve Gasket Before Setting Glass and
Use the Same Gasket on the
Series Base Shoes
Inside to Finish the Installation.
- Designed for Use With FHC
Item No. ACH1K Installation Tool
GASKET FOR ACHIEVE GASKET FOR TRADITIONAL
SERIES BASE SHOES SERIES BASE SHOES
ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
ACH2G For 1/2" to 3/4" Glass 1SGA250 250' Roll 1SGM250 250' Roll
Patent
ACH3G For 13/16" Glass Pending 1SGA500 500' Roll 1SGM500 500' Roll
Minimum Order: 1 Box. Minimum Order: 1 Roll. Minimum Order: 1 Roll.
®
FHC ACHIEVE
- Available for A1M, - Custom End
Base Shoe Cladding A3M and A5M Caps Available
Series Base Shoe
and End Caps
ASC10
Standard
Cladding
ASC1F A1C0F
Inside Outside
- Works With FHC Achieve Fascia Fascia
Series Base Shoes Cladding Cladding
- Available in Four Architectural
Finishes; Brushed Stainless,
Polished Stainless, Satin AEC1 End Cap for A1M Series
Anodized, and Matte Black AEC3 End Cap for A3M Series
AEC5 End Cap for A5M Series
- Install With CT040 High Bond
Tape or S790BL Silicone
- 304 Alloy ®
EXPERIENCE AND INNOVATION 01
4361 Firestone Blvd. South Gate, CA 90280 Toll Free: (888) 295-4531 | Fax: 323 336-8307 | Email: railing@fhc-usa.com | Web: fhc-usa.com
