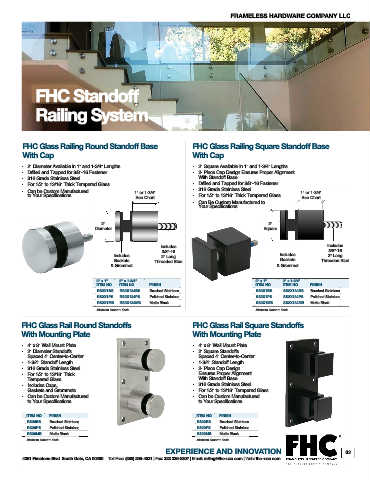

Page 7 - FHCRS01 Architectural Railing Systems Brochure

FRAMELESS HARDWARE COMPANY LLC

FHC Standoff

Railing System

FHC Glass Railing Round Standoff Base FHC Glass Railing Square Standoff Base
With Cap With Cap
- 2" Diameter Available in 1" and 1-3/4" Lengths - 2" Square Available in 1" and 1-3/4" Lengths
- Drilled and Tapped for 3/8"-16 Fastener - 2- Piece Cap Design Ensures Proper Alignment
- 316 Grade Stainless Steel With Standoff Base
- For 1/2" to 13/16" Thick Tempered Glass - Drilled and Tapped for 3/8"-16 Fastener
- Can be Custom Manufactured 1" or 1-3/4" - 316 Grade Stainless Steel 1" or 1-3/4"
to Your Specifications See Chart - For 1/2" to 13/16" Thick Tempered Glass See Chart
- Can Be Custom Manufactured to
Your Specifications

2" 2"
Diameter Square

Includes Includes
3/8"-16 3/8"-16
Includes 2" Long Includes 2" Long
Gaskets Threaded Stud Gaskets Threaded Stud
& Grommet & Grommet

2" x 1" 2" x 1-3/4" 2" x 1" 2" x 1-3/4"
ITEM NO. ITEM NO. FINISH ITEM NO. ITEM NO. FINISH
RS2X1BS RS2X134BS Brushed Stainless SS2X1BS SS2X134BS Brushed Stainless
RS2X1PS RS2X134PS Polished Stainless SS2X1PS SS2X134PS Polished Stainless
RS2X1MB RS2X134MB Matte Black SS2X1MB SS2X134MB Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Glass Rail Round Standoffs FHC Glass Rail Square Standoffs
With Mounting Plate With Mounting Plate

- 4" x 8" Wall Mount Plate - 4" x 8" Wall Mount Plate
- 2" Diameter Standoffs - 2" Square Standoffs
Spaced 4" Center-to-Center Spaced 4" Center-to-Center
- 1-3/4" Standoff Length - 1-3/4" Standoff Length
- 316 Grade Stainless Steel - 2- Piece Cap Design
- For 1/2" to 13/16" Thick Ensures Proper Alignment
Tempered Glass With Standoff Base.
- Includes Caps, - 316 Grade Stainless Steel
Gaskets and Grommets - For 1/2" to 13/16" Tempered Glass
- Can be Custom Manufactured - Can be Custom Manufactured
to Your Specifications to Your Specifications

ITEM NO. FINISH ITEM NO. FINISH
RS20BS Brushed Stainless SS20BS Brushed Stainless
RS20PS Polished Stainless SS20PS Polished Stainless
RS20MB Matte Black SS20MB Matte Black
®
Minimum Order: 1 Each. Minimum Order: 1 Each.
EXPERIENCE AND INNOVATION 03
