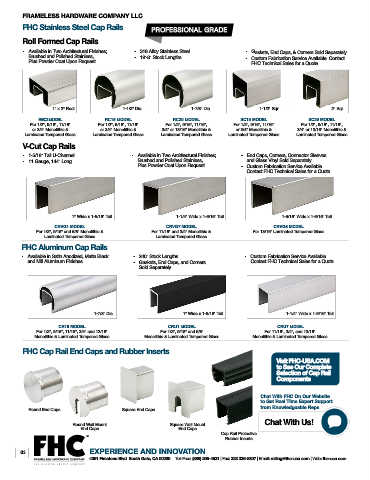

Page 6 - FHCRS01 Architectural Railing Systems Brochure

FRAMELESS HARDWARE COMPANY LLC
FHC Stainless Steel Cap Rails PROFESSIONAL GRADE

Roll Formed Cap Rails
- Available in Two Architectural Finishes; - 316 Alloy Stainless Steel - Gaskets, End Caps, & Corners Sold Separately
Brushed and Polished Stainless, - 19'-8" Stock Lengths - Custom Fabrication Service Available. Contact
Plus Powder Coat Upon Request FHC Technical Sales for a Quote

1" x 2" Rect. 1-1/2" Dia. 1-7/8" Dia. 1-1/2" Sqr. 2" Sqr.
REC2 MODEL RC15 MODEL RC20 MODEL SC15 MODEL SC20 MODEL
For 1/2", 9/16", 11/16" For 1/2", 9/16", 11/16" For 1/2", 9/16", 11/16", For 1/2", 9/16", 11/16" For 1/2", 9/16", 11/16",
or 3/4" Monolithic & or 3/4" Monolithic & 3/4" or 13/16" Monolithic & or 3/4" Monolithic & 3/4" or 13/16" Monolithic &
Laminated Tempered Glass Laminated Tempered Glass Laminated Tempered Glass Laminated Tempered Glass Laminated Tempered Glass

V-Cut Cap Rails
- 1-5/16" Tall U-Channel - Available in Two Architectural Finishes; - End Caps, Corners, Connector Sleeves
- 11 Gauge, 144" Long Brushed and Polished Stainless, and Glass Vinyl Sold Separately
Plus Powder Coat Upon Request - Custom Fabrication Service Available.
Contact FHC Technical Sales for a Quote

1" Wide x 1-5/16" Tall 1-1/4" Wide x 1-5/16" Tall 1-5/16" Wide x 1-5/16" Tall
CRVG1 MODEL CRVG7 MODEL CRVG8 MODEL
For 1/2", 9/16" and 5/8" Monolithic & For 11/16" and 3/4" Monolithic & For 13/16" Laminated Tempered Glass
Laminated Tempered Glass Laminated Tempered Glass
FHC Aluminum Cap Rails

- Available in Satin Anodized, Matte Black - 240" Stock Lengths - Custom Fabrication Service Available.

and Mill Aluminum Finishes - Gaskets, End Caps, and Corners Contact FHC Technical Sales for a Quote

Sold Separately

1-7/8" Dia. 1" Wide x 1-5/16" Tall 1-1/4" Wide x 1-5/16" Tall

CR19 MODEL CRU1 MODEL CRU7 MODEL
For 1/2", 9/16", 11/16", 3/4" and 13/16" For 1/2", 9/16" and 5/8" For 11/16", 3/4", and 13/16"
Monolithic & Laminated Tempered Glass Monolithic & Laminated Tempered Glass Monolithic & Laminated Tempered Glass

FHC Cap Rail End Caps and Rubber Inserts
Visit FHC-USA.COM
to See Our Complete
Selection of Cap Rail
Components

Chat With FHC On Our Website
to Get Real Time Expert Support
from Knowledgeable Reps
Round End Caps Square End Caps
Chat With Us!
Round Wall Mount Square Wall Mount
End Caps End Caps
Cap Rail Protective
®
Rubber Inserts
02 EXPERIENCE AND INNOVATION
4361 Firestone Blvd. South Gate, CA 90280 Toll Free: (888) 295-4531 | Fax: 323 336-8307 | Email: railing@fhc-usa.com | Web: fhc-usa.com
