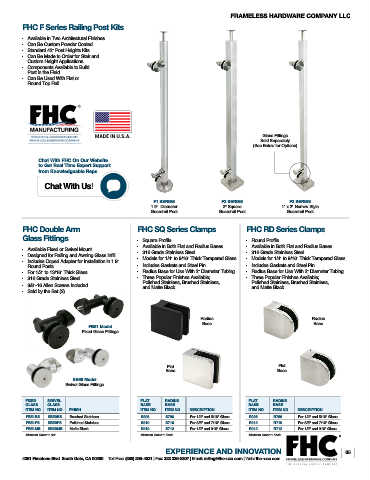

Page 9 - FHCRS01 Architectural Railing Systems Brochure

FRAMELESS HARDWARE COMPANY LLC
FHC F Series Railing Post Kits

- Available in Two Architectural Finishes
- Can Be Custom Powder Coated
- Standard 42" Post Heights Kits
- Can Be Made to Order for Stair and
Custom Height Applications
- Components Available to Build
Post in the Field
- Can Be Used With Flat or
Round Top Rail

Glass Fittings
Sold Separately
(See Below for Options)

Chat With FHC On Our Website
to Get Real Time Expert Support
from Knowledgeable Reps

Chat With Us!

F1 SERIES F2 SERIES F3 SERIES
1.9" Diameter 2" Square 1" x 2" Narrow Style
Guardrail Post Guardrail Post Guardrail Post

FHC Double Arm FHC SQ Series Clamps FHC RD Series Clamps
Glass Fittings - Square Profile - Round Profile
- Available in Both Flat and Radius Bases - Available in Both Flat and Radius Bases
- Available Fixed or Swivel Mount
- 316 Grade Stainless Steel - 316 Grade Stainless Steel
- Designed for Railing and Awning Glass Infill - Models for 1/4" to 9/16" Thick Tempered Glass - Models for 1/4" to 9/16" Thick Tempered Glass
- Includes Coped Adapter for Installation in 1.9" - Includes Gaskets and Steel Pin - Includes Gaskets and Steel Pin
Round Posts
- Radius Base for Use With 2" Diameter Tubing - Radius Base for Use With 2” Diameter Tubing
- For 1/2" to 13/16” Thick Glass
- Three Popular Finishes Available; - Three Popular Finishes Available;
- 316 Grade Stainless Steel
Polished Stainless, Brushed Stainless, Polished Stainless, Brushed Stainless,
- 3/8"-16 Allen Screws Included and Matte Black and Matte Black
- Sold by the Set (2)

Radius Radius
Base Base
FB51 Model
Fixed Glass Fittings

Flat Flat
Base Base
SB50 Model
Swivel Glass Fittings

FIXED SWIVEL FLAT RADIUS FLAT RADIUS
GLASS GLASS BASE BASE BASE BASE
ITEM NO. ITEM NO. FINISH ITEM NO. ITEM NO. DESCRIPTION ITEM NO. ITEM NO. DESCRIPTION
FB51BS SB50BS Brushed Stainless S906 S706 For 1/4" and 5/16" Glass R906 R706 For 1/4" and 5/16" Glass
FB51PS SB50PS Polished Stainless S910 S710 For 3/8" and 7/16" Glass R910 R710 For 3/8" and 7/16" Glass
FB51MB SB50MB Matte Black S912 S712 For 1/2" and 916" Glass R912 R712 For 1/2" and 916" Glass
®
Minimum Order: 1 Set. Minimum Order: 1 Each. Minimum Order: 1 Each.
