Page 23 - FAH23R Architectural Hardware Catalog
P. 23

ARCHITECTURAL HARDWARE GLASS ENTRANCE SYSTEMS                                                 SECTION 1
                                            ®

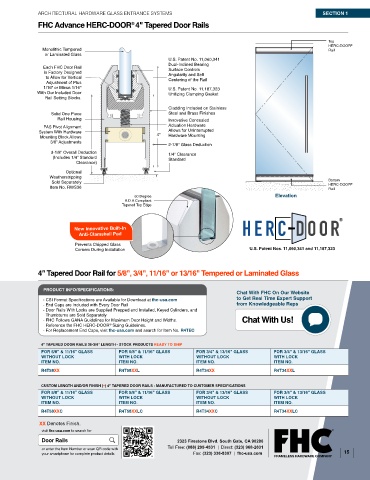

              FHC Advance HERC-DOOR 4" Square Door Rails

                                                                                                             Top
                                                                                                             HERC-DOOR ®
               Monolithic Tempered                                                                           Rail
                or Laminated Glass
                                                         U.S. Patent No. 11,060,341
                                                         Dual-Inclined Bearing
               Each FHC Door Rail
                                                         Surface Controls
                is Factory Designed                      Angularity and Self
                to Allow for Vertical
                                                         Centering of the Rail
                Adjustment of Plus
               1/16" or Minus 1/16"                      U.S. Patent No. 11,187,323
             With Our Included Door                      Unitizing Clamping Gasket
                Rail Setting Blocks.
                                                         Cladding Included on Stainless
                  Solid One Piece                        Steel and Brass Finishes
                    Rail Housing
                                                         Innovative Concealed
                                                         Actuation Hardware
               PAS Pivot Alignment
              System With Hardware                       Allows for Uninterrupted
                                                     4"  Hardware Mounting
              Mounting Block Allows
                  3/8" Adjustments
                                                         2-7/8" Glass Deduction
                  3-1/8" Overall Deduction               1/4" Clearance
                   (Includes 1/4" Standard
                                                         Standard
                          Clearance)
                       Optional
                 Weatherstripping                                                                            Bottom
                  Sold Separately                                                                            HERC-DOOR ®
                  Item No. RWS36                                                                             Rail
                                           New Modern                                       Elevation
                                       Crisp Corner Design


                          New Innovative Built-In
                           Anti-Clamshell Pad
                          Prevents Chipped Glass
                          Corners During Installation                               U.S. Patent Nos. 11,060,341 and 11,187,323



              4" Square Door Rail for 5/8", 3/4", 11/16" or 13/16" Tempered or Laminated Glass

               PRODUCT INFO/SPECIFICATIONS:
                                                                               Chat With FHC On Our Website
               -  CSI Format Specifications are Available for Download at fhc-usa.com  to Get Real Time Expert Support
               -  End Caps are Included with Every Door Rail                   from Knowledgeable Reps
               -  Door Rails With Locks are Supplied Prepped and Installed, Keyed Cylinders, and
                Thumbturns are Sold Separately
               -  FHC Follows GANA Guidelines for Maximum Door Height and Widths.   Chat With Us!
                                     ®
                Reference the FHC HERC-DOOR  Sizing Guidelines.
               -  For Replacement End Caps, visit fhc-usa.com and search for Item No. R4SEC
               4" SQUARE DOOR RAILS 35-3/4" LENGTH - STOCK PRODUCTS READY TO SHIP
               FOR 5/8" & 11/16" GLASS   FOR 5/8" & 11/16" GLASS   FOR 3/4" & 13/16" GLASS   FOR 3/4" & 13/16" GLASS
               WITHOUT LOCK             WITH LOCK                 WITHOUT LOCK              WITH LOCK
               ITEM NO.                 ITEM NO.                  ITEM NO.                  ITEM NO.
               R4S58XX                  R4S58XXL                  R4S34XX                   R4S34XXL

               CUSTOM LENGTH AND/OR FINISH ( ) 4" SQUARE DOOR RAILS - MANUFACTURED TO CUSTOMER SPECIFICATIONS
                                   *
               FOR 5/8" & 11/16" GLASS   FOR 5/8" & 11/16" GLASS   FOR 3/4" & 13/16" GLASS   FOR 3/4" & 13/16" GLASS
               WITHOUT LOCK             WITH LOCK                 WITHOUT LOCK              WITH LOCK
               ITEM NO.                 ITEM NO.                  ITEM NO.                  ITEM NO.
               R4S58XXC                 R4S58XXLC                 R4S34XXC                  R4S34XXLC

              XX Denotes Finish.
               visit fhc-usa.com to search for
