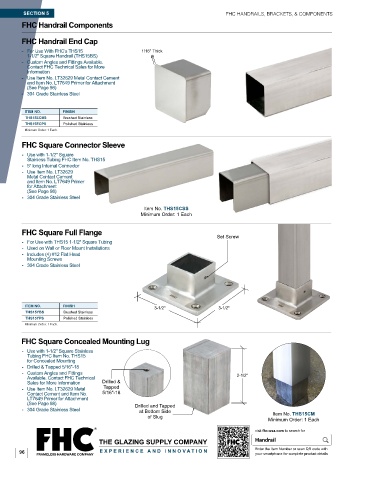

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Components

FHC Handrail End Cap
- For Use With FHC's THS15 1/16" Thick
1-1/2" Square Handrail (THS15BS)
- Custom Angles and Fittings Available.
Contact FHC Technical Sales for More
Information
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment
(See Page 98)
- 304 Grade Stainless Steel

ITEM NO. FINISH
THS15ECBS Brushed Stainless
THS15ECPS Polished Stainless
Minimum Order: 1 Each.

FHC Square Connector Sleeve

- Use with 1-1/2" Square
Stainless Tubing FHC Item No. THS15
- 5" long Internal Connector
- Use Item No. LT32629
Metal Contact Cement
and Item No. LT7649 Primer
for Attachment
(See Page 98)
- 304 Grade Stainless Steel
Item No. THS15CSS
Minimum Order: 1 Each

FHC Square Full Flange
Set Screw
- For Use with THS15 1-1/2" Square Tubing
- Used on Wall or Floor Mount Installations
- Includes (4) #12 Flat Head
Mounting Screws
- 304 Grade Stainless Steel

ITEM NO. FINISH
3-1/2" 3-1/2"
THS15YBS Brushed Stainless
THS15YPS Polished Stainless
Minimum Order: 1 Each.
FHC Square Concealed Mounting Lug

- Use with 1-1/2" Square Stainless
Tubing FHC Item No. THS15
for Concealed Mounting
- Drilled & Tapped 5/16"-18
- Custom Angles and Fittings 2-1/2"
Available. Contact FHC Technical
Sales for More Information Drilled &
Tapped
- Use Item No. LT32629 Metal
Contact Cement and Item No. 5/16"-18
LT7649 Primer for Attachment
(See Page 98)
Drilled and Tapped
- 304 Grade Stainless Steel at Bottom Side
of Slug Item No. THS15CM
Minimum Order: 1 Each
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Handrail

96 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
