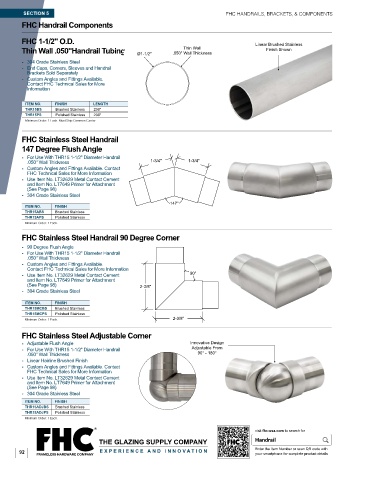

Page 106 - FHC FGR24R Architectural Railing Systems

SECTION 5 FHC HANDRAILS, BRACKETS, & COMPONENTS
FHC Handrail Components

FHC 1-1/2" O.D. Linear Brushed Stainless
Thin Wall .050"Handrail Tubing Thin Wall Finish Shown
Ø1-1/2" .050" Wall Thickness
- 304 Grade Stainless Steel
- End Caps, Corners, Sleeves and Handrail
Brackets Sold Separately
- Custom Angles and Fittings Available.
Contact FHC Technical Sales for More
Information

ITEM NO. FINISH LENGTH
THR15BS Brushed Stainless 236"
THR15PS Polished Stainless 236"
Minimum Order: 1 Each. Must Ship Common Carrier

FHC Stainless Steel Handrail
147 Degree Flush Angle
- For Use With THR15 1-1/2" Diameter Handrail
.050" Wall Thickness 1-3/4" 1-3/4"
- Custom Angles and Fittings Available. Contact
FHC Technical Sales for More Information
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment
(See Page 98)
- 304 Grade Stainless Steel
147°
ITEM NO. FINISH
THR15ABS Brushed Stainless
THR15APS Polished Stainless
Minimum Order: 1 Each.
FHC Stainless Steel Handrail 90 Degree Corner

- 90 Degree Flush Angle
- For Use With THR15 1-1/2" Diameter Handrail
.050" Wall Thickness
- Custom Angles and Fittings Available.
Contact FHC Technical Sales for More Information
90°
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment
(See Page 98) 2-3/8"
- 304 Grade Stainless Steel
ITEM NO. FINISH
THR15MCBS Brushed Stainless
THR15MCPS Polished Stainless
Minimum Order: 1 Each. 2-3/8"
FHC Stainless Steel Adjustable Corner
- Adjustable Flush Angle Innovative Design
Adjustable From
- For Use With THR15 1-1/2" Diameter Handrail
.050" Wall Thickness 90° - 180°
- Linear Hairline Brushed Finish
- Custom Angles and Fittings Available. Contact
FHC Technical Sales for More Information
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment
(See Page 98)
- 304 Grade Stainless Steel
ITEM NO. FINISH
THR15ADJBS Brushed Stainless
THR15ADJPS Polished Stainless
Minimum Order: 1 Each.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Handrail

92 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
