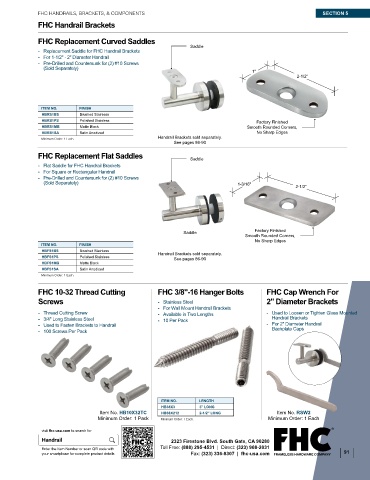

Page 105 - FHC FGR24R Architectural Railing Systems

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Brackets

FHC Replacement Curved Saddles
Saddle
- Replacement Saddle for FHC Handrail Brackets
- For 1-1/2" - 2" Diameter Handrail
- Pre-Drilled and Countersunk for (2) #10 Screws
(Sold Separately)
1"
2-1/2"

ITEM NO. FINISH
HBRS1BS Brushed Stainless
HBRS1PS Polished Stainless
Factory Finished
HBRS1MB Matte Black Smooth Rounded Corners,
HBRS1SA Satin Anodized No Sharp Edges
Handrail Brackets sold separately.
Minimum Order: 1 Each.
See pages 86-90
FHC Replacement Flat Saddles
Saddle
- Flat Saddle for FHC Handrail Brackets
- For Square or Rectangular Handrail
- Pre-Drilled and Countersunk for (2) #10 Screws
(Sold Separately) 1-3/16"
2-1/2"

Factory Finished
Saddle
Smooth Rounded Corners,
No Sharp Edges
ITEM NO. FINISH
HBFS1BS Brushed Stainless
Handrail Brackets sold separately.
HBFS1PS Polished Stainless
See pages 86-90
HBFS1MB Matte Black
HBFS1SA Satin Anodized
Minimum Order: 1 Each.
FHC 10-32 Thread Cutting FHC 3/8"-16 Hanger Bolts FHC Cap Wrench For
Screws - Stainless Steel 2" Diameter Brackets
- For Wall Mount Handrail Brackets
- Thread Cutting Screw - Available in Two Lengths - Used to Loosen or Tighten Glass Mounted
- 3/4" Long Stainless Steel - 10 Per Pack Handrail Brackets
- Used to Fasten Brackets to Handrail - For 2" Diameter Handrail
Backplate Caps
- 100 Screws Per Pack

ITEM NO. LENGTH
HB38X3 3" LONG
Item No. HB10X32TC HB38X212 2-1/2" LONG Item No. RSW2
Minimum Order: 1 Pack Minimum Order: 1 Each. Minimum Order: 1 Each
visit fhc-usa.com to search for
Handrail 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 91
