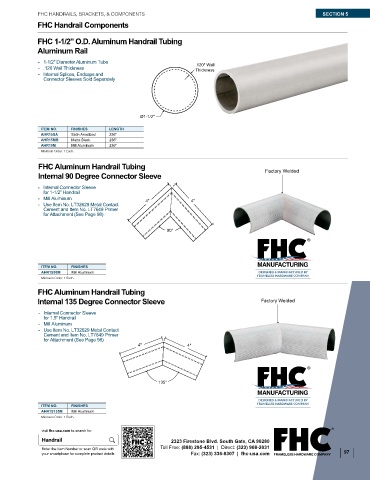

Page 111 - FHC FGR24R Architectural Railing Systems

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Components

FHC 1-1/2" O.D. Aluminum Handrail Tubing
Aluminum Rail

- 1-1/2" Diameter Aluminum Tube .120" Wall
- .120 Wall Thickness Thickness
- Internal Splices, Endcaps and
Connector Sleeves Sold Separately

Ø1-1/2"

ITEM NO. FINISHES LENGTH
AHR15SA Satin Anodized 236"
AHR15MB Matte Black 236"
AHR15M Mill Aluminum 236"
Minimum Order: 1 Each.
FHC Aluminum Handrail Tubing
Internal 90 Degree Connector Sleeve Factory Welded

- Internal Connector Sleeve
for 1-1/2" Handrail
- Mill Aluminum 4" 4"
- Use Item No. LT32629 Metal Contact
Cement and Item No. LT7649 Primer
for Attachment (See Page 98)

90°

ITEM NO. FINISHES
AHR1S90M Mill Aluminum
Minimum Order: 1 Each.
FHC Aluminum Handrail Tubing
Internal 135 Degree Connector Sleeve Factory Welded

- Internal Connector Sleeve
for 1.5" Handrail
- Mill Aluminum
- Use Item No. LT32629 Metal Contact
Cement and Item No. LT7649 Primer
for Attachment (See Page 98)
4" 4"

135°

ITEM NO. FINISHES
AHR1S135M Mill Aluminum
Minimum Order: 1 Each.
