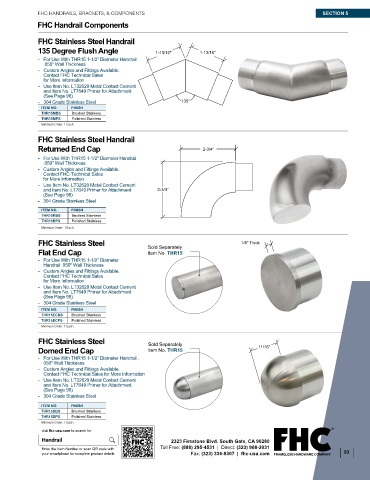

Page 107 - FHC FGR24R Architectural Railing Systems

FHC HANDRAILS, BRACKETS, & COMPONENTS SECTION 5
FHC Handrail Components

FHC Stainless Steel Handrail
135 Degree Flush Angle 1-13/16" 1-13/16"
- For Use With THR15 1-1/2" Diameter Handrail
.050" Wall Thickness
- Custom Angles and Fittings Available.
Contact FHC Technical Sales
for More Information
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment
(See Page 98)
- 304 Grade Stainless Steel 135°
ITEM NO. FINISH
THR15MBS Brushed Stainless
THR15MPS Polished Stainless
Minimum Order: 1 Each.

FHC Stainless Steel Handrail
Returned End Cap 2-3/4"
- For Use With THR15 1-1/2" Diameter Handrail
.050" Wall Thickness
- Custom Angles and Fittings Available.
Contact FHC Technical Sales
for More Information
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment 2-3/4"
(See Page 98)
- 304 Grade Stainless Steel
ITEM NO. FINISH
THR15RBS Brushed Stainless
THR15RPS Polished Stainless
Minimum Order: 1 Each.
FHC Stainless Steel 1/8" Thick
Sold Separately
Flat End Cap Item No. THR15
- For Use With THR15 1-1/2" Diameter
Handrail .050" Wall Thickness
- Custom Angles and Fittings Available.
Contact FHC Technical Sales
for More Information
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment
(See Page 98)
- 304 Grade Stainless Steel
ITEM NO. FINISH
THR15ECBS Brushed Stainless
THR15ECPS Polished Stainless
Minimum Order: 1 Each. .
FHC Stainless Steel Sold Separately
Domed End Cap Item No. THR15 11/16"

- For Use With THR15 1-1/2" Diameter Handrail .
050" Wall Thickness
- Custom Angles and Fittings Available.
Contact FHC Technical Sales for More Information
- Use Item No. LT32629 Metal Contact Cement
and Item No. LT7649 Primer for Attachment
(See Page 98)
- 304 Grade Stainless Steel
ITEM NO. FINISH
THR15DBS Brushed Stainless
THR15DPS Polished Stainless
Minimum Order: 1 Each.
visit fhc-usa.com to search for
Handrail 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 93
