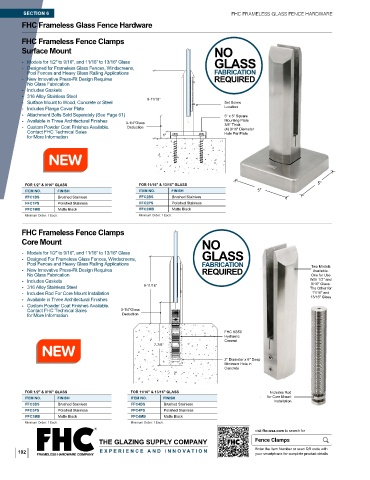

Page 116 - FHC FGR24R Architectural Railing Systems

SECTION 6 FHC FRAMELESS GLASS FENCE HARDWARE

FHC Frameless Glass Fence Hardware

FHC Frameless Fence Clamps
NO
Surface Mount
- Models for 1/2" to 9/16", and 11/16" to 13/16" Glass GLASS
- Designed for Frameless Glass Fences, Windscreens,
Pool Fences and Heavy Glass Railing Applications FABRICATION
- New Innovative Press-Fit Design Requires REQUIRED
No Glass Fabrication
- Includes Gaskets
- 316 Alloy Stainless Steel
9-11/16"
- Surface Mount to Wood, Concrete or Steel Set Screw
- Includes Flange Cover Plate Location
- Attachment Bolts Sold Separately (See Page 61) 5" x 5" Square
- Available in Three Architectural Finishes Mounting Plate
3-1/4"Glass
- Custom Powder Coat Finishes Available. Deduction 3/8" Thick
(4) 9/16" Diameter
Contact FHC Technical Sales Hole Per Plate
for More Information 1"

5"
FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS
ITEM NO. FINISH ITEM NO. FINISH 5"
FFC1BS Brushed Stainless FFC2BS Brushed Stainless
FFC1PS Polished Stainless FFC2PS Polished Stainless
FFC1MB Matte Black FFC2MB Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Frameless Fence Clamps
NO
Core Mount
- Models for 1/2" to 9/16", and 11/16" to 13/16" Glass GLASS
- Designed For Frameless Glass Fences, Windscreens,
Pool Fences and Heavy Glass Railing Applications FABRICATION Two Models
- New Innovative Press-Fit Design Requires REQUIRED Available.
No Glass Fabrication One for Use
- Includes Gaskets With 1/2" and
9/16" Glass.
- 316 Alloy Stainless Steel 9-11/16" The Other for
- Includes Rod For Core Mount Installation 11/16" and
13/16" Glass
- Available in Three Architectural Finishes
- Custom Powder Coat Finishes Available.
Contact FHC Technical Sales 3-1/4"Glass
for More Information Deduction
FHC KS50
Hydraulic
Cement
7-7/8"

2" Diameter x 6" Deep
Minimum Hole in
Concrete
2"

FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS Includes Rod
for Core Mount
ITEM NO. FINISH ITEM NO. FINISH
Installation
FFC3BS Brushed Stainless FFC4BS Brushed Stainless
FFC3PS Polished Stainless FFC4PS Polished Stainless
FFC3MB Matte Black FFC4MB Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Fence Clamps
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
102 EXPERIENCE AND INNOV A TION your smartphone for complete product details
