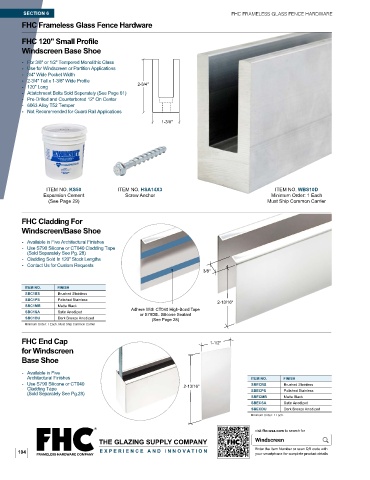

SECTION 6 FHC FRAMELESS GLASS FENCE HARDWARE

FHC Frameless Glass Fence Hardware

FHC 120" Small Profile
Windscreen Base Shoe
- For 3/8" or 1/2" Tempered Monolithic Glass
- Use for Windscreen or Partition Applications
- 3/4" Wide Pocket Width
- 2-3/4" Tall x 1-3/8" Wide Profile
2-3/4"
- 120" Long
- Attatchment Bolts Sold Seperately (See Page 61)
- Pre-Drilled and Counterbored 12" On Center
- 6063 Alloy T52 Temper
- Not Recommended for Guard Rail Applications
1-3/8"

ITEM NO. KS50 ITEM NO. HSA14X3 ITEM NO. WBS10D
Expansion Cement Screw Anchor Minimum Order: 1 Each
(See Page 29) Must Ship Common Carrier

FHC Cladding For
Windscreen/Base Shoe

- Available in Five Architectural Finishes
- Use S790 Silicone or CT040 Cladding Tape
(Sold Separately See Pg. 28)
- Cladding Sold In 120" Stock Lengths
- Contact Us for Custom Requests
3/8"

ITEM NO. FINISH
SBC1BS Brushed Stainless
SBC1PS Polished Stainless
2-13/16"
SBC1MB Matte Black
Adhere With CT040 High-Bond Tape
SBC1SA Satin Anodized
or S790BL Silicone Sealant
SBC1DU Dark Bronze Anodized
(See Page 28)
Minimum Order: 1 Each. Must Ship Common Carrier
FHC End Cap 1-1/2"
for Windscreen
Base Shoe
- Available in Five
Architectural Finishes ITEM NO. FINISH
- Use S790 Silicone or CT040 2-13/16" SBECBS Brushed Stainless
Cladding Tape SBECPS Polished Stainless
(Sold Separately See Pg.28)
SBECMB Matte Black
SBECSA Satin Anodized
SBECDU Dark Bronze Anodized
Minimum Order: 1 Each.

visit fhc-usa.com to search for
Windscreen
THE GLAZING SUPPLY COMPANY
Enter the Item Number or scan QR code with
104 EXPERIENCE AND INNOV A TION your smartphone for complete product details
