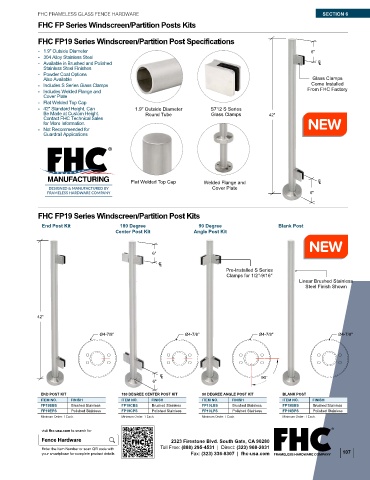

FHC FRAMELESS GLASS FENCE HARDWARE                                                            SECTION 6

              FHC FP Series Windscreen/Partition Posts Kits

              FHC FP19 Series Windscreen/Partition Post Specifications
                -    1.9" Outside Diameter                                                              6"
                -  304 Alloy Stainless Steel

                -  Available in Brushed and Polished                                                      C L
               Stainless Steel Finishes
                -  Powder Coat Options
               Also Available                                                                           Glass Clamps
                -  Includes S Series Glass Clamps                                                       Come Installed
                -  Includes Welded Flange and                                                          From FHC Factory
               Cover Plate
                -  Flat Welded Top Cap

                -  42" Standard Height, Can    1.9" Outside Diameter   S712 S Series
               Be Made at Custom Height.         Round Tube            Glass Clamps       42"
               Contact FHC Technical Sales
               for More Information.
                -  Not Recommended for
               Guardrail Applications







                                            Flat Welded Top Cap     Welded Flange and                     C L
                                                                       Cover Plate
                                                                                                        6"



              FHC FP19 Series Windscreen/Partition Post Kits
               End Post Kit              180 Degree                90 Degree                 Blank Post
                                       Center Post Kit           Angle Post Kit



                                                   6"
                                                     C L
                                                                            Pre-Installed S Series
                                                                            Clamps for 1/2"-9/16"
                                                                                                    Linear Brushed Stainless
                                                                                                      Steel Finish Shown




             42"


                                  Ø4-7/8"                     Ø4-7/8"                  Ø4-7/8"                   Ø4-7/8"






                                                      C L
                                                                                       90˚
                                                    6"
               END POST KIT              180 DEGREE CENTER POST KIT  90 DEGREE ANGLE POST KIT  BLANK POST
               ITEM NO.  FINISH          ITEM NO.  FINISH           ITEM NO.  FINISH           ITEM NO.  FINISH
               FP19EBS   Brushed Stainless  FP19CBS  Brushed Stainless  FP19LBS  Brushed Stainless  FP19BBS  Brushed Stainless
               FP19EPS   Polished Stainless  FP19CPS  Polished Stainless  FP19LPS  Polished Stainless  FP19BPS  Polished Stainless
               Minimum Order: 1 Each.    Minimum Order: 1 Each.     Minimum Order: 1 Each.     Minimum Order: 1 Each.
