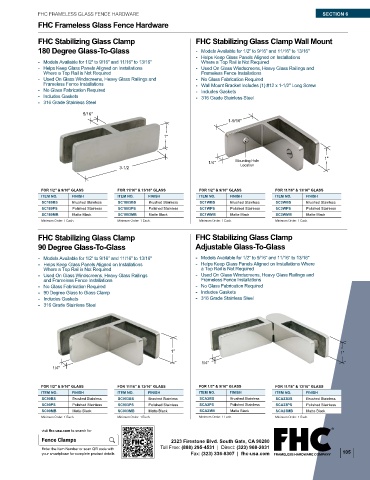

FHC FRAMELESS GLASS FENCE HARDWARE SECTION 6

FHC Frameless Glass Fence Hardware

FHC Stabilizing Glass Clamp FHC Stabilizing Glass Clamp Wall Mount
180 Degree Glass-To-Glass - Models Available for 1/2" to 9/16" and 11/16" to 13/16"
- Helps Keep Glass Panels Aligned on Installations
- Models Available for 1/2" to 9/16" and 11/16" to 13/16" Where a Top Rail is Not Required
- Helps Keep Glass Panels Aligned on Installations - Used On Glass Windscreens, Heavy Glass Railings and
Where a Top Rail is Not Required Frameless Fence Installations
- Used On Glass Windscreens, Heavy Glass Railings and - No Glass Fabrication Required
Frameless Fence Installations - Wall Mount Bracket Includes (1) #12 x 1-1/2" Long Screw
- No Glass Fabrication Required - Includes Gaskets
- Includes Gaskets - 316 Grade Stainless Steel
- 316 Grade Stainless Steel
5/16"
1-9/16"

1"

1"
Mounting Hole
1/4"
3-1/2 Location

FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
SC180BS Brushed Stainless SC1803BS Brushed Stainless SC1WBS Brushed Stainless SC3WBS Brushed Stainless
SC180PS Polished Stainless SC1803PS Polished Stainless SC1WPS Polished Stainless SC3WPS Polished Stainless
SC180MB Matte Black SC1803MB Matte Black SC1WMB Matte Black SC3WMB Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Stabilizing Glass Clamp FHC Stabilizing Glass Clamp
90 Degree Glass-To-Glass Adjustable Glass-To-Glass

- Models Available for 1/2" to 9/16" and 11/16" to 13/16" - Models Available for 1/2" to 9/16" and 11/16" to 13/16"
- Helps Keep Glass Panels Aligned on Installations - Helps Keep Glass Panels Aligned on Installations Where
Where a Top Rail is Not Required a Top Rail is Not Required
- Used On Glass Windscreens, Heavy Glass Railings - Used On Glass Windscreens, Heavy Glass Railings and
and Frameless Fence Installations Frameless Fence Installations
- No Glass Fabrication Required - No Glass Fabrication Required
- 90 Degree Glass to Glass Clamp - Includes Gaskets
- Includes Gaskets - 316 Grade Stainless Steel
- 316 Grade Stainless Steel

1" 1"
1/4"
1/4"

FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS FOR 1/2" & 9/16" GLASS FOR 11/16" & 13/16" GLASS
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
SC90BS Brushed Stainless SC903BS Brushed Stainless SCA2BS Brushed Stainless SCA23BS Brushed Stainless
SC90PS Polished Stainless SC903PS Polished Stainless SCA2PS Polished Stainless SCA23PS Polished Stainless
SC90MB Matte Black SC903MB Matte Black SCA2MB Matte Black SCA23MB Matte Black
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
Fence Clamps 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 105
