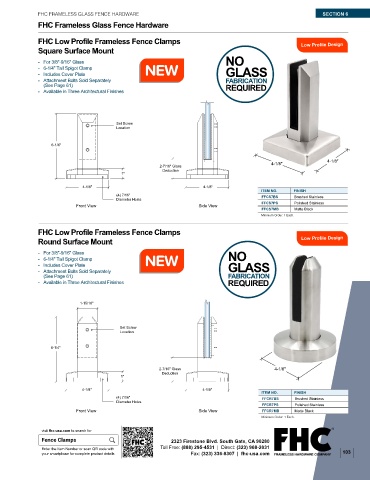

FHC FRAMELESS GLASS FENCE HARDWARE SECTION 6

FHC Frameless Glass Fence Hardware

FHC Low Profile Frameless Fence Clamps
Low Profile Design
Square Surface Mount
NO
- For 3/8"-9/16" Glass
- 6-1/4" Tall Spigot Clamp GLASS
- Includes Cover Plate
- Attachment Bolts Sold Separately FABRICATION
(See Page 61) REQUIRED
- Available in Three Architectural Finishes

Set Screw
Location

6-1/4"

4-1/8"
4-1/8"
2-7/16" Glass
Deduction
1"
4-1/8" 4-1/8"
ITEM NO. FINISH
(4) 7/16" FFCS7BS Brushed Stainless
Diameter Holes
FFCS7PS Polished Stainless
Front View Side View
FFCS7MB Matte Black
Minimum Order: 1 Each.
FHC Low Profile Frameless Fence Clamps
Low Profile Design
Round Surface Mount
- For 3/8"-9/16" Glass NO
- 6-1/4" Tall Spigot Clamp
- Includes Cover Plate GLASS
- Attachment Bolts Sold Separately
(See Page 61) FABRICATION
- Available in Three Architectural Finishes REQUIRED

1-15/16"

Set Screw
Location

6-1/4"

2-7/16" Glass 4-1/8"
Deduction
1"
4-1/8" 4-1/8"
ITEM NO. FINISH
(4) 7/16" FFCR7BS Brushed Stainless
Diameter Holes
FFCR7PS Polished Stainless
Front View Side View FFCR7MB Matte Black
Minimum Order: 1 Each.
visit fhc-usa.com to search for
Fence Clamps 4361 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com 103
