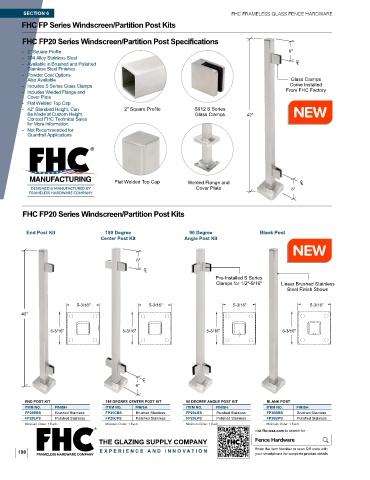

Page 122 - FHC FGR24R Architectural Railing Systems

SECTION 6 FHC FRAMELESS GLASS FENCE HARDWARE

FHC FP Series Windscreen/Partition Post Kits

FHC FP20 Series Windscreen/Partition Post Specifications
- 2" Square Profile 6"

- 304 Alloy Stainless Steel
- Available in Brushed and Polished C L
Stainless Steel Finishes
- Powder Coat Options
Also Available Glass Clamps
- Includes S Series Glass Clamps Come Installed
- Includes Welded Flange and From FHC Factory
Cover Plate
- Flat Welded Top Cap

- 42" Standard Height, Can 2" Square Profile S912 S Series
Be Made at Custom Height. Glass Clamps 42"
Contact FHC Technical Sales
for More Information.
- Not Recommended for
Guardrail Applications

Flat Welded Top Cap Welded Flange and C L
Cover Plate 6"

FHC FP20 Series Windscreen/Partition Post Kits

End Post Kit 180 Degree 90 Degree Blank Post
Center Post Kit Angle Post Kit

6"

C L
Pre-Installed S Series
Clamps for 1/2"-9/16" Linear Brushed Stainless
Steel Finish Shown

5-3/16" 5-3/16" 5-3/16" 5-3/16"
42"

5-3/16" 5-3/16" 5-3/16" 5-3/16"

C L
6"

END POST KIT 180 DEGREE CENTER POST KIT 90 DEGREE ANGLE POST KIT BLANK POST
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
FP20EBS Brushed Stainless FP20CBS Brushed Stainless FP20LBS Brushed Stainless FP20BBS Brushed Stainless
FP20EPS Polished Stainless FP20CPS Polished Stainless FP20LPS Polished Stainless FP20BPS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
