FHC GLASS GATE SYSTEMS AND HARDWARE SECTION 7
FHC Glass Gate Systems

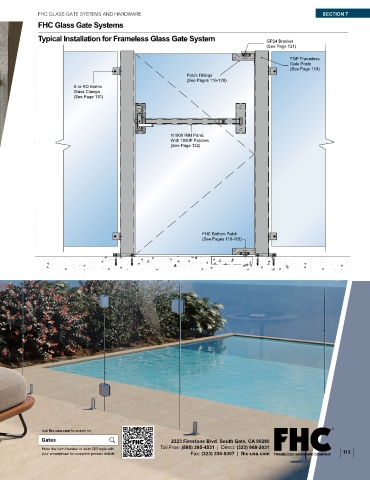

Typical Installation for Frameless Glass Gate System GP24 Bracket
(See Page 121)
FGP Frameless
Gate Posts
(See Page 124)
Patch Fittings
(See Pages 116-120)
S or RD Series
Glass Clamps
(See Page 110)
N1900 RIM Panic
With 1900P Patches
(See Page 132)
FHC Bottom Patch
(See Pages 118-119)
