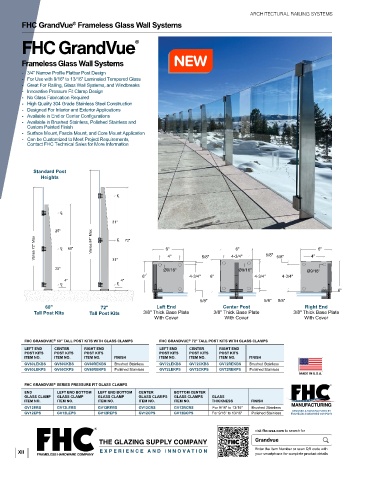

Page 14 - FHC FGR24R Architectural Railing Systems

ARCHITECTURAL RAILING SYSTEMS
FHC GrandVue Frameless Glass Wall Systems
®
FHC GrandVue ®

Frameless Glass Wall Systems

- 3/4" Narrow Profile Flatbar Post Design
- For Use with 9/16" to 13/16" Laminated Tempered Glass
- Great For Railing, Glass Wall Systems, and Windbreaks
- Innovative Pressure Fit Clamp Design
- No Glass Fabrication Required
- High Quality 304 Grade Stainless Steel Construction
- Designed For Interior and Exterior Applications
- Available in End or Center Configurations
- Available in Brushed Stainless, Polished Stainless and
Custom Painted Finish

- Surface Mount, Fascia Mount, and Core Mount Application
- Can be Customized to Meet Project Requirements,
Contact FHC Technical Sales for More Information

Standard Post
Heights

C L

C L
31"
25"
Varies 72" Max C L 60" Varies 84" Max C L 72" 6" 4" 5/8" 4-3/4" 5/8" 5/8" 4" 6"
6"

25" 31"
Ø9/16" Ø9/16" Ø9/16"
6"
6" 4-3/4" 6" 4-3/4" 4-3/4"
4" 4"
C L C L
6"
5/8" 5/8" 5/8"
60" 72" Left End Center Post Right End
Tall Post Kits Tall Post Kits 3/8" Thick Base Plate 3/8" Thick Base Plate 3/8" Thick Base Plate
With Cover With Cover With Cover

FHC GRANDVUE® 60" TALL POST KITS WITH GLASS CLAMPS FHC GRANDVUE® 72" TALL POST KITS WITH GLASS CLAMPS
LEFT END CENTER RIGHT END LEFT END CENTER RIGHT END
POST KITS POST KITS POST KITS POST KITS POST KITS POST KITS
ITEM NO. ITEM NO. ITEM NO. FINISH ITEM NO. ITEM NO. ITEM NO. FINISH
GV60LEKBS GV60CKBS GV60REKBS Brushed Stainless GV72LEKBS GV72CKBS GV72REKBS Brushed Stainless
GV60LEKPS GV60CKPS GV60REKPS Polished Stainless GV72LEKPS GV72CKPS GV72REKPS Polished Stainless

FHC GRANDVUE® SERIES PRESSURE FIT GLASS CLAMPS
END LEFT END BOTTOM LEFT END BOTTOM CENTER BOTTOM CENTER
GLASS CLAMP GLASS CLAMP GLASS CLAMP GLASS CLAMPS GLASS CLAMPS GLASS
ITEM NO. ITEM NO. ITEM NO. ITEM NO. ITEM NO. THICKNESS FINISH
GV12EBS GV12LEBS GV12REBS GV12CBS GV12BCBS For 9/16" to 13/16" Brushed Stainless
DESIGNED & MANUFACTURED BY
GV12EPS GV12LEPS GV12REPS GV12CPS GV12BCPS For 9/16" to 13/16" Polished Stainless FRAMELESS HARDWARE COMPANY
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Grandvue

XIV EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
