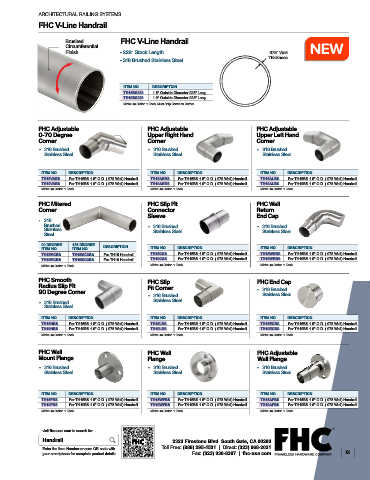

Page 11 - FHC FGR24R Architectural Railing Systems

ARCHITECTURAL RAILING SYSTEMS
FHC V-Line Handrail

FHC V-Line Handrail
Brushed
Circumferential
Finish - 228" Stock Length .078" Wall
- 316 Brushed Stainless Steel Thickness

ITEM NO. DESCRIPTION
TH15BS228 1.5" Outside Diameter 228" Long
TH19BS228 1.9" Outside Diameter 228" Long
Minimum Order: 1 Each. Must Ship Common Carrier.

FHC Adjustable FHC Adjustable FHC Adjustable
0-70 Degree Upper Right Hand Upper Left Hand
Corner Corner Corner
- 316 Brushed - 316 Brushed - 316 Brushed
Stainless Steel Stainless Steel Stainless Steel

ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
TH15VABS For TH15BS 1.5" O.D. (.078 Wall) Handrail TH15ARBS For TH15BS 1.5" O.D. (.078 Wall) Handrail TH15ALBS For TH15BS 1.5" O.D. (.078 Wall) Handrail
TH19VABS For TH19BS 1.9" O.D. (.078 Wall) Handrail TH19ARBS For TH19BS 1.9" O.D. (.078 Wall) Handrail TH19ALBS For TH19BS 1.9" O.D. (.078 Wall) Handrail
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
FHC Mitered FHC Slip Fit FHC Wall
Corner Connector Return
Sleeve End Cap
- 316
Brushed - 316 Brushed - 316 Brushed
Stainless Stainless Steel Stainless Steel
Steel
90 DEGREE 135 DEGREE DESCRIPTION
ITEM NO. ITEM NO. ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
TH15MCBS TH15MCBS For TH15 Handrail TH15CSS For TH15BS 1.5" O.D. (.078 Wall) Handrail TH15WRBS For TH15BS 1.5" O.D. (.078 Wall) Handrail
TH19MCBS TH19MCBS For TH19 Handrail TH19CSS For TH19BS 1.9" O.D. (.078 Wall) Handrail TH19WRBS For TH19BS 1.9" O.D. (.078 Wall) Handrail
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Smooth FHC Slip FHC End Cap
Radius Slip Fit Fit Corner
90 Degree Corner - 316 Brushed
Stainless Steel
- 316 Brushed
Stainless Steel
- 316 Brushed
Stainless Steel
ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
TH15HBS For TH15BS 1.5" O.D. (.078 Wall) Handrail TH15LBS For TH15BS 1.5" O.D. (.078 Wall) Handrail TH15ECBS For TH15BS 1.5" O.D. (.078 Wall) Handrail
TH19HBS For TH19BS 1.9" O.D. (.078 Wall) Handrail TH19LBS For TH19BS 1.9" O.D. (.078 Wall) Handrail TH19ECBS For TH19BS 1.9" O.D. (.078 Wall) Handrail
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Wall FHC Wall FHC Adjustable
Mount Flange Flange Wall Flange

- 316 Brushed - 316 Brushed - 316 Brushed
Stainless Steel Stainless Steel Stainless Steel

ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
TH15FBS For TH15BS 1.5" O.D. (.078 Wall) Handrail TH15WFBS For TH15BS 1.5" O.D. (.078 Wall) Handrail TH15AFBS For TH15BS 1.5" O.D. (.078 Wall) Handrail
TH19FBS For TH19BS 1.9" O.D. (.078 Wall) Handrail TH19WFBS For TH19BS 1.9" O.D. (.078 Wall) Handrail TH19AFBS For TH19BS 1.9" O.D. (.078 Wall) Handrail
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.

visit fhc-usa.com to search for
Handrail 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com XI
