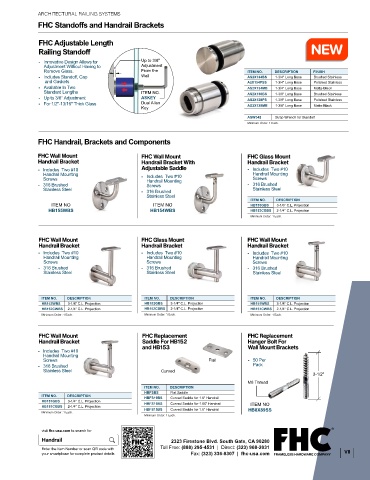

Page 9 - FHC FGR24R Architectural Railing Systems

ARCHITECTURAL RAILING SYSTEMS
FHC Standoffs and Handrail Brackets

FHC Adjustable Length
Railing Standoff
- Innovative Design Allows for Up to 3/8"
Adjustment Without Having to Adjustment
Remove Glass. From the ITEM NO. DESCRIPTION FINISH
- I ncludes Standoff, Cap Wall AS2X134BS 1-3/4" Long Base Brushed Stainless
and Gaskets A2X134PSS 1-3/4" Long Base Polished Stainless
- Available In Two AS2X134MB 1-3/4" Long Base Matte Black
Standard Lengths ITEM NO. AS2X138BS 1-3/8" Long Base Brushed Stainless
- Up to 3/8" Adjustment ASKEY AS2X138PS 1-3/8" Long Base Polished Stainless
- For 1/2"-13/16" Thick Glass Dual Allen AS2X138MB 1-3/8" Long Base Matte Black
Key
ASW342 Strap Wrench for Standoff
Minimum Order: 1 Each.

FHC Handrail, Brackets and Components

FHC Wall Mount FHC Wall Mount FHC Glass Mount
Handrail Bracket Handrail Bracket With Handrail Bracket

- Includes Two #10 Adjustable Saddle - Includes Two #10
Handrail Mounting - Includes Two #10 Handrail Mounting
Screws Screws
Handrail Mounting
- 316 Brushed Screws - 316 Brushed
Stainless Steel Stainless Steel
- 316 Brushed
Stainless Steel
ITEM NO. DESCRIPTION
ITEM NO ITEM NO HB153GBS 3-1/6" C.L. Projection
HB155WBS HB154WBS HB153CGBS 2-1/4" C.L. Projection
Minimum Order: 1 Each.

FHC Wall Mount FHC Glass Mount FHC Wall Mount
Handrail Bracket Handrail Bracket Handrail Bracket
- Includes Two #10 - Includes Two #10 - Includes Two #10
Handrail Mounting Handrail Mounting Handrail Mounting
Screws Screws Screws
- 316 Brushed - 316 Brushed - 316 Brushed
Stainless Steel Stainless Steel Stainless Steel

ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION
HB152WBS 3-1/8" C.L. Projection HB152GBS 3-1/4" C.L. Projection HB151WBS 3-1/8" C.L. Projection
HB152CWBS 2-1/4" C.L. Projection HB152CGBS 2-1/4" C.L. Projection HB151CWBS 2-1/4" C.L. Projection
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.

FHC Wall Mount FHC Replacement FHC Replacement
Handrail Bracket Saddle For HB152 Hanger Bolt For
and HB153 Wall Mount Brackets
- Includes Two #10
Handrail Mounting
Screws Flat - 50 Per
- 316 Brushed Pack
Stainless Steel Curved
3-1/2"
M8 Thread
ITEM NO. DESCRIPTION
HBFSBS Flat Saddle
ITEM NO. DESCRIPTION HBFS19BS Curved Saddle for 1.9" Handrail
HB151GBS 3-1/4" C.L. Projection HBFS16BS
HB151CGBS 2-1/4" C.L. Projection Curved Saddle for 1.66" Handrail ITEM NO
HBFS15BS Curved Saddle for 1.5" Handrail HB8X89SS
Minimum Order: 1 Each.
Minimum Order: 1 Each.
visit fhc-usa.com to search for
Handrail 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com IX
