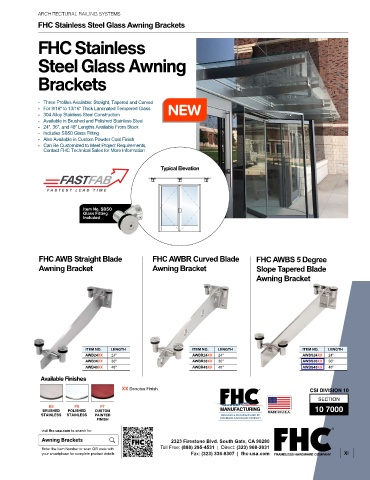

Page 13 - FHC FGR24R Architectural Railing Systems

ARCHITECTURAL RAILING SYSTEMS
FHC Stainless Steel Glass Awning Brackets

FHC Stainless

Steel Glass Awning

Brackets

- Three Profiles Available: Straight, Tapered and Curved
- For 9/16" to 13/16" Thick Laminated Tempered Glass
- 304 Alloy Stainless Steel Construction
- Available in Brushed and Polished Stainless Steel
- 24", 36", and 48" Lengths Available From Stock
- Includes SB50 Glass Fitting
- Also Available in Custom Powder Coat Finish
- Can Be Customized to Meet Project Requirements,
Contact FHC Technical Sales for More Information

Typical Elevation

Item No. SB50
Glass Fitting
Included

FHC AWB Straight Blade FHC AWBR Curved Blade FHC AWBS 5 Degree
Awning Bracket Awning Bracket Slope Tapered Blade
Awning Bracket

ITEM NO. LENGTH ITEM NO. LENGTH ITEM NO. LENGTH
AWB24XX 24" AWBR24XX 24" AWBS24XX 24"
AWB36XX 36" AWBR36XX 36" AWBS36XX 36"
AWB48XX 48" AWBR48XX 48" AWBS48XX 48"
Available Finishes

XX Denotes Finish

BS PS PT
BRUSHED POLISHED CUSTOM
STAINLESS STAINLESS PAINTED DESIGNED & MANUFACTURED BY
FINISH FRAMELESS HARDWARE COMPANY
visit fhc-usa.com to search for
Awning Brackets 4361 Firestone Blvd. South Gate, CA 90280
Toll Free: (888) 295-4531 | Direct: (323) 968-2031
Enter the Item Number or scan QR code with
your smartphone for complete product details Fax: (323) 336-8307 | fhc-usa.com XIII
