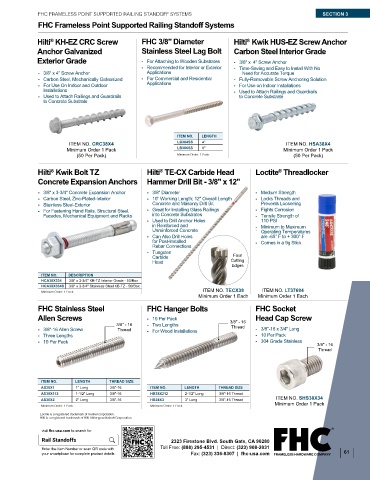

FHC FRAMELESS POINT SUPPORTED RAILING STANDOFF SYSTEMS SECTION 3

FHC Frameless Point Supported Railing Standoff Systems

®
®
Hilti KH-EZ CRC Screw FHC 3/8" Diameter Hilti Kwik HUS-EZ Screw Anchor
Anchor Galvanized Stainless Steel Lag Bolt Carbon Steel Interior Grade
Exterior Grade - For Attaching to Wooden Substrates - 3/8" x 4" Screw Anchor
- Recommended for Interior or Exterior - T ime-Saving and Easy to Install With No
- 3/8" x 4" Screw Anchor Applications Need for Accurate Torque
- Carbon Steel, Mechanically Galvanized - For Commercial and Residential - Fully-Removable Screw Anchoring Solution
Applications
- For Use On Indoor and Outdoor - For Use on Indoor Installations
Installations - Used to Attach Railings and Guardrails
- Used to Attach Railings and Guardrails to Concrete Substrate
to Concrete Substrate

ITEM NO. LENGTH
LB384SS 4"
ITEM NO. CRC38X4 ITEM NO. HSA38X4
Minimum Order 1 Pack LB386SS 6" Minimum Order 1 Pack
(50 Per Pack) Minimum Order: 1 Pack. (50 Per Pack)

®
®
®
Hilti Kwik Bolt TZ Hilti TE-CX Carbide Head Loctite Threadlocker
Concrete Expansion Anchors Hammer Drill Bit - 3/8" x 12"
- 3/8" x 3-3/4" Concrete Expansion Anchor - 3/8" Diameter - Medium Strength
- Carbon Steel, Zinc-Plated-Interior - 10" Working Length; 12" Overall Length - Locks Threads and
- Stainless Steel-Exterior Concrete and Masonry Drill Bit Prevents Loosening
- For Fastening Hand Rails, Structural Steel, - Great for Installing Glass Railings - Fights Corrosion
Facades, Mechanical Equipment and Racks into Concrete Substrates - Tensile Strength of
- Used to Drill Anchor Holes 110 PSI
in Reinforced and - Minimum to Maximum
Unreinforced Concrete ` Operating Temperatures
- Can Also Drill Holes are -65° F to + 300° F
for Post-Installed - Comes in a 9g Stick
Rebar Connections
- Tungsten
Carbide Four
Head Cutting
Edges
ITEM NO. DESCRIPTION
HCA38X334 3/8" x 3-3/4" KB-TZ Interior Grade - 50/Box
HCA38X334S 3/8" x 3-3/4" Stainless Steel KB-TZ - 50/Box
Minimum Order: 1 Pack. ITEM NO. TECX38 ITEM NO. LT37684
Minimum Order 1 Each Minimum Order 1 Each
FHC Stainless Steel FHC Hanger Bolts FHC Socket
Allen Screws - 10 Per Pack Head Cap Screw
3/8" - 16
3/8" - 16 - Two Lengths
- 3/8"-16 Allen Screw Thread - For Wood Installations Thread - 3/8"-16 x 3/4" Long
- Three Lengths - 10 Per Pack
- 10 Per Pack - 304 Grade Stainless
3/8" - 16
Thread

ITEM NO. LENGTH THREAD SIZE
AS38X1 1" Long 3/8"-16 ITEM NO. LENGTH THREAD SIZE
AS38X112 1-1/2" Long 3/8"-16 HB38X212 2-1/2" Long 3/8"-16 Thread
ITEM NO. SHS38X34
AS38X2 2" Long 3/8"-16 HB38X3 3" Long 3/8"-16 Thread
Minimum Order 1 Pack
Minimum Order: 1 Pack. Minimum Order: 1 Pack.
Loctite is a registered trademark of Henkel corporation.
Hilti is a registered trademark of Hilti Aktiengesellschaft Corporation.
