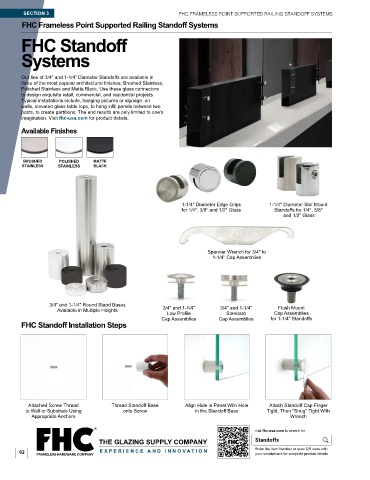

Page 76 - FHC FGR24R Architectural Railing Systems

SECTION 3 FHC FRAMELESS POINT SUPPORTED RAILING STANDOFF SYSTEMS

FHC Frameless Point Supported Railing Standoff Systems

FHC Standoff

Systems

Our line of 3/4" and 1-1/4" Diameter Standoffs are available in
three of the most popular architectural finishes; Brushed Stainless,
Polished Stainless and Matte Black. Use these glass connectors
to design exquisite retail, commercial, and residential projects.
Typical installations include, hanging pictures or signage, on
walls, elevated glass table tops, to hang infill panels between two
posts, to create partitions. The end results are only limited to one's
imagination. Visit fhc-usa.com for product details.
Available Finishes

BRUSHED POLISHED MATTE
STAINLESS STAINLESS BLACK

1-1/4" Diameter Edge Grips 1-1/4" Diameter Slot Mount
for 1/4", 3/8" and 1/2" Glass Standoffs for 1/4", 3/8"
and 1/2" Glass

Spanner Wrench for 3/4" to
1-1/4" Cap Assemblies

3/4" and 1-1/4" Round Stand Bases Flush Mount
Available in Multiple Heights 3/4" and 1-1/4" 3/4" and 1-1/4"
Low Profile Standard Cap Assemblies
Cap Assemblies Cap Assemblies for 1-1/4" Standoffs
FHC Standoff Installation Steps

Attached Screw Thread Thread Standoff Base Align Hole in Panel With Hole Attach Standoff Cap Finger
to Wall or Substrate Using onto Screw in the Standoff Base Tight, Then "Snug" Tight With
Appropriate Anchors Wrench
visit fhc-usa.com to search for
Standoffs
