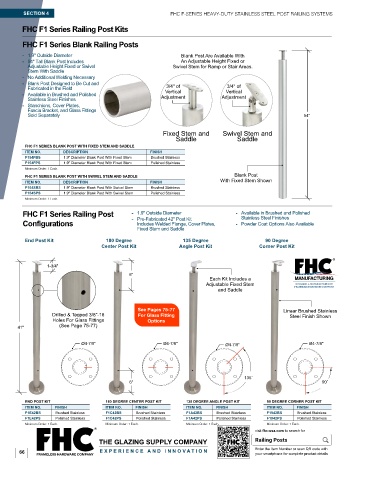

Page 80 - FHC FGR24R Architectural Railing Systems

SECTION 4 FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS

FHC F1 Series Railing Post Kits

FHC F1 Series Blank Railing Posts

- 1.9" Outside Diameter Blank Post Are Available With
- 54" Tall Blank Post Includes An Adjustable Height Fixed or
Adjustable Height Fixed or Swivel Swivel Stem for Ramp or Stair Areas.
Stem With Saddle
- No Additional Welding Necessary
- Blank Post Designed to Be Cut and
Fabricated in the Field 3/4" of 3/4" of
- Available in Brushed and Polished Vertical Vertical
Stainless Steel Finishes Adjustment Adjustment
- Stanchions, Cover Plates,
Fascia Bracket, and Glass Fittings
Sold Separately 54"

Fixed Stem and Swivel Stem and
Saddle Saddle
FHC F1 SERIES BLANK POST WITH FIXED STEM AND SADDLE
ITEM NO. DESCRIPTION FINISH
F154FBS 1.9" Diameter Blank Post With Fixed Stem Brushed Stainless
F154FPS 1.9" Diameter Blank Post With Fixed Stem Polished Stainless
Minimum Order: 1 Each.
FHC F1 SERIES BLANK POST WITH SWIVEL STEM AND SADDLE Blank Post
ITEM NO. DESCRIPTION FINISH With Fixed Stem Shown
F154SBS 1.9" Diameter Blank Post With Swivel Stem Brushed Stainless
F154SPS 1.9" Diameter Blank Post With Swivel Stem Polished Stainless
Minimum Order: 1 Each.
FHC F1 Series Railing Post - 1.9" Outside Diameter - Available in Brushed and Polished
Stainless Steel Finishes
Configurations - Pre-Fabricated 42" Post Kit - Powder Coat Options Also Available
Includes Welded Flange, Cover Plates,
Fixed Stem and Saddle
End Post Kit 180 Degree 135 Degree 90 Degree
Center Post Kit Angle Post Kit Corner Post Kit

1-3/4"
6"
Each Kit Includes a
Adjustable Fixed Stem
and Saddle

See Pages 75-77 Linear Brushed Stainless
Drilled & Tapped 3/8"-16 For Glass Fitting Steel Finish Shown
Holes For Glass Fittings Options
41" (See Page 75-77)

Ø4-7/8" Ø4-7/8" Ø4-7/8" Ø4-7/8"

135˚
6" 90˚

END POST KIT 180 DEGREE CENTER POST KIT 135 DEGREE ANGLE POST KIT 90 DEGREE CORNER POST KIT
ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH ITEM NO. FINISH
F1E42BS Brushed Stainless F1C42BS Brushed Stainless F1A42BS Brushed Stainless F1942BS Brushed Stainless
F1E42PS Polished Stainless F1C42PS Polished Stainless F1A42PS Polished Stainless F1942PS Polished Stainless
Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each. Minimum Order: 1 Each.
visit fhc-usa.com to search for
THE GLAZING SUPPLY COMPANY Railing Posts
66 EXPERIENCE AND INNOV A TION Enter the Item Number or scan QR code with
your smartphone for complete product details
