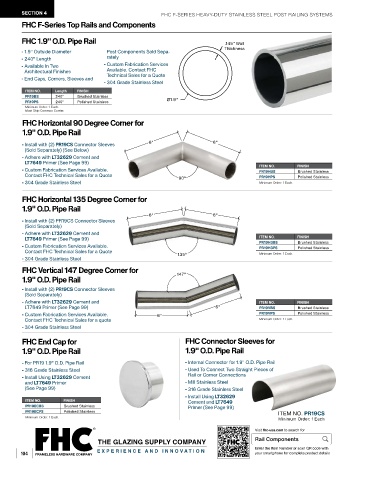

SECTION 4                                     FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS
        FHC F-Series Top Rails and Components

        FHC 1.9" O.D. Pipe Rail                                            .145" Wall

           - 1.9" Outside Diameter  Post Components Sold Sepa-             Thickness
           - 240" Length            rately
           -  Available In Two        -  Custom Fabrication Services
         Architectural Finishes     Available. Contact FHC
           -  End Caps, Corners, Sleeves and   Technical Sales for a Quote
                                      - 304 Grade Stainless Steel
         ITEM NO.  Length  FINISH
         PR19BS    240"    Brushed Stainless
         PR19PS    240"    Polished Stainless           Ø1.9"
         Minimum Order: 1 Each.
         Must Ship Common Carrier.
        FHC Horizontal 90 Degree Corner for
        1.9" O.D. Pipe Rail

           - Install with (2) PR19CS Connector Sleeves   6"            6"
          (Sold Separately) (See Below)
           - Adhere with LT32629 Cement and
          LT7649 Primer (See Page 99)
           - Custom Fabrication Services Available.                                    ITEM NO.    FINISH
                                                                                                    Brushed Stainless
                                                                                       PR19HBS
          Contact FHC Technical Sales for a Quote           90°                        PR19HPS      Polished Stainless
           - 304 Grade Stainless Steel                                                 Minimum Order: 1 Each.
        FHC Horizontal 135 Degree Corner for
        1.9" O.D. Pipe Rail
                                                  6"                   6"
           - Install with (2) PR19CS Connector Sleeves
          (Sold Separately)
           - Adhere with LT32629 Cement and
          LT7649 Primer (See Page 99)                                                  ITEM NO.    FINISH
           - Custom Fabrication Services Available.                                    PR19H3BS     Brushed Stainless
                                                                                                    Polished Stainless
                                                                                       PR19H3PS
          Contact FHC Technical Sales for a Quote           135°                       Minimum Order: 1 Each.
           - 304 Grade Stainless Steel
        FHC Vertical 147 Degree Corner for                  147°
        1.9" O.D. Pipe Rail
           - Install with (2) PR19CS Connector Sleeves
          (Sold Separately)
           - Adhere with LT32629 Cement and                                            ITEM NO.    FINISH
          LT7649 Primer (See Page 99)                                   6"             PR19VBS      Brushed Stainless
           - Custom Fabrication Services Available.   6"                               PR19VPS      Polished Stainless
          Contact FHC Technical Sales for a quote                                      Minimum Order: 1 Each.
           - 304 Grade Stainless Steel
        FHC End Cap for                                       FHC Connector Sleeves for
        1.9" O.D. Pipe Rail                                   1.9" O.D. Pipe Rail

           -  For PR19 1.9" O.D. Pipe Rail                       -  Internal Connector for 1.9" O.D. Pipe Rail
           -  316 Grade Stainless Steel                          -  Used To Connect Two Straight Pieces of
           -  Install Using LT32629 Cement                     Rail or Corner Connections
         and LT7649 Primer                                       -  Mill Stainless Steel
         (See Page 99)                                           -  316 Grade Stainless Steel

                                                                 -  Install Using LT32629
         ITEM NO.     FINISH                                   Cement and LT7649
         PR19ECBS     Brushed Stainless                        Primer (See Page 99)
         PR19ECPS     Polished Stainless                                                     ITEM NO. PR19CS
         Minimum Order: 1 Each.                                                              Minimum Order: 1 Each
