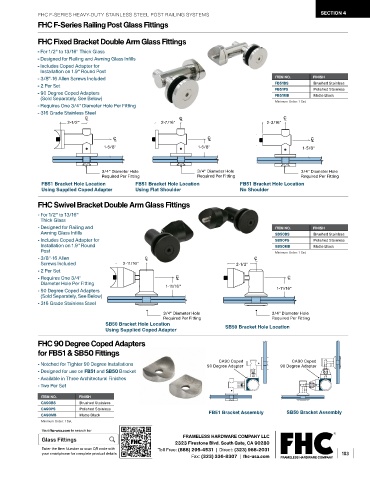

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS                                 SECTION 4
              FHC F-Series Railing Post Glass Fittings


              FHC Fixed Bracket Double Arm Glass Fittings
                - For 1/2" to 13/16" Thick Glass
                - Designed for Railing and Awning Glass Infills
                -  Includes Coped Adapter for
              Installation on 1.9" Round Post
                - 3/8"-16 Allen Screws Included                                             ITEM NO.     FINISH
                - 2 Per Set                                                                 FB51BS       Brushed Stainless
                -  90 Degree Coped Adapters                                                 FB51PS       Polished Stainless
              (Sold Separately, See Below)                                                  FB51MB       Matte Black
                - Requires One 3/4" Diameter Hole Per Fitting                               Minimum Order: 1 Set.
                - 316 Grade Stainless Steel
                             C L                            C L                                C L
                       2-1/2"                         2-7/16"                            2-3/16"

                                      C L                             C L                               C L
                                   1-5/8"                          1-5/8"                            1-5/8"



                                   3/4" Diameter Hole             3/4" Diameter Hole                 3/4" Diameter Hole
                                   Required Per Fitting           Required Per Fitting               Required Per Fitting
               FB51 Bracket Hole Location     FB51 Bracket Hole Location        FB51 Bracket Hole Location
               Using Supplied Coped Adapter   Using Flat Shoulder               No Shoulder

              FHC Swivel Bracket Double Arm Glass Fittings

                -  For 1/2" to 13/16"
              Thick Glass
                -  Designed for Railing and                                                 ITEM NO.     FINISH
              Awning Glass Infills                                                          SB50BS       Brushed Stainless
                -  Includes Coped Adapter for                                               SB50PS       Polished Stainless
              Installation on 1.9" Round                                                    SB50MB       Matte Black
              Post                                                                          Minimum Order: 1 Set.
                -  3/8"-16 Allen                 C L                                 C L
              Screws Included             2-11/16"                             2-1/2"
                - 2 Per Set
                -  Requires One 3/4"                       C L                                  C L
              Diameter Hole Per Fitting                 1-11/16"
                -  90 Degree Coped Adapters                                                  1-11/16"
              (Sold Separately, See Below)
                - 316 Grade Stainless Steel
                                                       3/4" Diameter Hole                  3/4" Diameter Hole
                                                       Required Per Fitting                Required Per Fitting
                                    SB50 Bracket Hole Location              SB50 Bracket Hole Location
                                    Using Supplied Coped Adapter

              FHC 90 Degree Coped Adapters
              for FB51 & SB50 Fittings
                                                                         CA90 Coped               CA90 Coped
                - Notched for Tighter 90 Degree Installations         90 Degree Adapter       90 Degree Adapter
                - Designed for use on FB51 and SB50 Bracket
                - Available in Three Architectural Finishes
                - Two Per Set
               ITEM NO.    FINISH
               CA90BS      Brushed Stainless
               CA90PS      Polished Stainless                                                   SB50 Bracket Assembly
               CA90MB      Matte Black                                FB51 Bracket Assembly
               Minimum Order: 1 Set.
