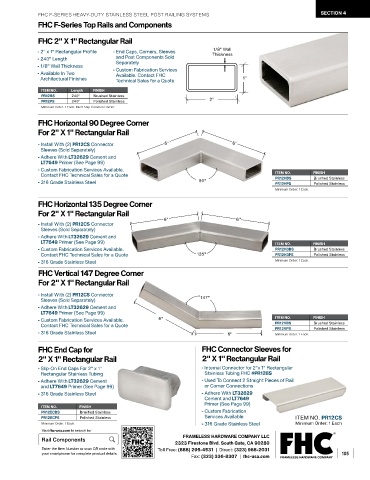

FHC F-SERIES HEAVY-DUTY STAINLESS STEEL POST RAILING SYSTEMS SECTION 4
FHC F-Series Top Rails and Components

FHC 2" X 1" Rectangular Rail

1/8" Wall
- 2" x 1" Rectangular Profile - End Caps, Corners, Sleeves Thickness
- 240" Length and Post Components Sold
Separately
- 1/8" Wall Thickness - Custom Fabrication Services
- Available In Two Available. Contact FHC
Architectural Finishes Technical Sales for a Quote 1"
ITEM NO. Length FINISH
PR12BS 240" Brushed Stainless
PR12PS 240" Polished Stainless 2"
Minimum Order: 1 Each. Must Ship Common Carrier.
FHC Horizontal 90 Degree Corner
For 2" X 1" Rectangular Rail

- Install With (2) PR12CS Connector 6" 6"
Sleeves (Sold Separately)
- Adhere With LT32629 Cement and
LT7649 Primer (See Page 99)
- Custom Fabrication Services Available.
Contact FHC Technical Sales for a Quote ITEM NO. FINISH
- 316 Grade Stainless Steel 90° PR12HBS Brushed Stainless
Polished Stainless
PR12HPS
Minimum Order: 1 Each.
FHC Horizontal 135 Degree Corner
For 2" X 1" Rectangular Rail
6" 6"
- Install With (2) PR12CS Connector
Sleeves (Sold Separately)
- Adhere With LT32629 Cement and
LT7649 Primer (See Page 99) ITEM NO. FINISH
- Custom Fabrication Services Available. PR12H3BS Brushed Stainless
Contact FHC Technical Sales for a Quote 135° PR12H3PS Polished Stainless
- 316 Grade Stainless Steel Minimum Order: 1 Each.
FHC Vertical 147 Degree Corner
For 2" X 1" Rectangular Rail

- Install With (2) PR12CS Connector
Sleeves (Sold Separately) 147°
- Adhere With LT32629 Cement and
LT7649 Primer (See Page 99)
- Custom Fabrication Services Available. 6" ITEM NO. FINISH
Contact FHC Technical Sales for a Quote PR12VBS Brushed Stainless
- 316 Grade Stainless Steel 6" PR12VPS Polished Stainless
Minimum Order: 1 Each.
FHC End Cap for FHC Connector Sleeves for
2" X 1" Rectangular Rail 2" X 1" Rectangular Rail
- Slip-On End Caps For 2" x 1" - Internal Connector for 2"x 1" Rectangular
Rectangular Stainless Tubing Stainless Tubing FHC #PR12BS
- Adhere With LT32629 - Used To Connect 2 Straight Pieces of Rail
Cement and LT7649 or Corner Connections
Primer (See Page 99) - Adhere With LT32629
316 Grade Stainless Steel Cement and LT7649
Primer (See Page 99)
ITEM NO. FINISH
PR12ECBS Brushed Stainless - Custom Fabrication
PR12ECPS Polished Stainless Services Available ITEM NO. PR12CS
Minimum Order: 1 Each. - 316 Grade Stainless Steel Minimum Order: 1 Each
