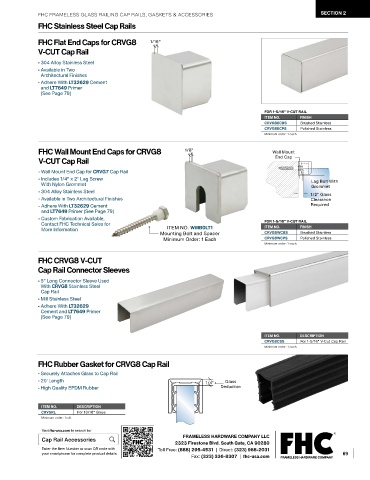

Page 71 - FGR26-Frameless-Glass-Railing

FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES SECTION 2
FHC Stainless Steel Cap Rails

FHC Flat End Caps for CRVG8 1/16"
V-CUT Cap Rail
- 304 Alloy Stainless Steel
- Available in Two
Architectural Finishes
- Adhere With LT32629 Cement
and LT7649 Primer
(See Page 79)

FOR 1-5/16" V-CUT RAIL
ITEM NO. FINISH
CRVG8ECBS Brushed Stainless
CRVG8ECPS Polished Stainless
Minimum order: 1 each.

FHC Wall Mount End Caps for CRVG8 1/8" Wall Mount
V-CUT Cap Rail End Cap

- Wall Mount End Cap for CRVG7 Cap Rail
- Includes 1/4" x 2" Lag Screw
With Nylon Grommet Lag Bolt With
Grommet
- 304 Alloy Stainless Steel 1/2" Glass
- Available in Two Architectural Finishes Clearance

- Adhere With LT32629 Cement Required
and LT7649 Primer (See Page 79)
- Custom Fabrication Available,
Contact FHC Technical Sales for FOR 1-5/16" V-CUT RAIL
More Information ITEM NO. WMB0LT1 ITEM NO. FINISH
Mounting Bolt and Spacer CRVG8WCBS Brushed Stainless
Minimum Order: 1 Each CRVG8WCPS Polished Stainless
Minimum order: 1 each.

FHC CRVG8 V-CUT
Cap Rail Connector Sleeves
- 5" Long Connector Sleeve Used
With CRVG8 Stainless Steel
Cap Rail
- Mill Stainless Steel
- Adhere With LT32629
Cement and LT7649 Primer
(See Page 79)

ITEM NO. DESCRIPTION
CRVG8CSS For 1-5/16" V-Cut Cap Rail
Minimum order: 1 each.

FHC Rubber Gasket for CRVG8 Cap Rail
- Securely Attaches Glass to Cap Rail
- 20' Length 1/4" Glass
- High Quality EPDM Rubber Deduction

ITEM NO. DESCRIPTION
CRV5RL For 13/16" Glass
Minimum order: 1 roll.
Visit fhc-usa.com to search for
Cap Rail Accessories FRAMELESS HARDWARE COMPANY LLC
2323 Firestone Blvd. South Gate, CA 90280
Enter the Item Number or scan QR code with Toll Free: (888) 295-4531 | Direct: (323) 968-2031
your smartphone for complete product details 69
Fax: (323) 336-8307 | fhc-usa.com
