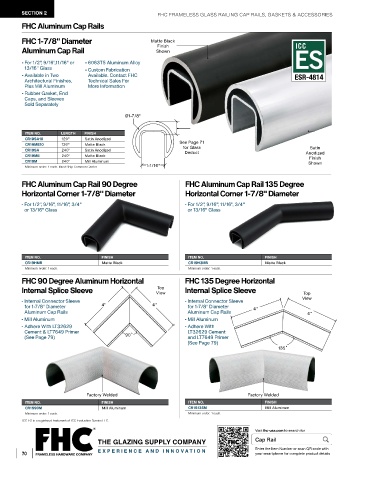

Page 72 - FGR26-Frameless-Glass-Railing

SECTION 2 FHC FRAMELESS GLASS RAILING CAP RAILS, GASKETS & ACCESSORIES
FHC Aluminum Cap Rails

FHC 1-7/8" Diameter Matte Black
Finish
Aluminum Cap Rail Shown ICC
- For 1/2", 9/16",11/16" or - 6063T5 Aluminum Alloy
13/16" Glass - Custom Fabrication
- Available in Two Available. Contact FHC
Architectural Finishes, Technical Sales For ESR-4814
Plus Mill Aluminum More Information
- Rubber Gasket, End
Caps, and Sleeves
Sold Separately
Ø1-7/8"

ITEM NO. LENGTH FINISH
CR19SA10 120" Satin Anodized
CR19MB10 120" Matte Black See Page 71
for Glass
Satin
CR19SA 240" Satin Anodized Deduct Anodized
CR19MB 240" Matte Black Finish
CR19M 240" Mill Aluminum Shown
Minimum order: 1 each. Must Ship Common Carrier 1-1/16"
FHC Aluminum Cap Rail 90 Degree FHC Aluminum Cap Rail 135 Degree
Horizontal Corner 1-7/8" Diameter Horizontal Corner 1-7/8" Diameter
- For 1/2", 9/16", 11/16", 3/4" - For 1/2", 9/16", 11/16", 3/4"
or 13/16" Glass or 13/16" Glass

ITEM NO. FINISH ITEM NO. FINISH
CR19HMB Matte Black CR19H3MB Matte Black
Minimum order: 1 each. Minimum order: 1 each.
FHC 90 Degree Aluminum Horizontal FHC 135 Degree Horizontal
Top
Internal Splice Sleeve View Internal Splice Sleeve Top
- Internal Connector Sleeve - Internal Connector Sleeve View
for 1-7/8" Diameter 4" 4" for 1-7/8" Diameter 4"
Aluminum Cap Rails Aluminum Cap Rails 4"
- Mill Aluminum - Mill Aluminum
- Adhere With LT32629 - Adhere With
Cement & LT7649 Primer LT32629 Cement
(See Page 79) 90˚ and LT7649 Primer
(See Page 79)
135˚

Factory Welded Factory Welded
ITEM NO. FINISH ITEM NO. FINISH
CR1S90M Mill Aluminum CR1S135M Mill Aluminum
Minimum order: 1 each. Minimum order: 1 each.
ICC-ES is a registered trademark of ICC Evaluation Service LLC.
